Introduction
The 6-seat low chassis golf cart is the perfect solution for golf courses that require transportation for larger groups. This cart offers ample seating for six passengers, ensuring that everyone can travel together comfortably. Its low center of gravity provides excellent stability, making the ride smooth and secure, even on uneven ground.
With a powerful electric motor, the 6-seat cart delivers a quiet and efficient ride, allowing for peaceful transport across the course. The low-profile design not only contributes to a stable ride but also minimizes the cart’s impact on the turf, helping to preserve the course’s pristine condition. Ideal for tournaments, events, or regular play, this cart is a valuable asset for any golf course.

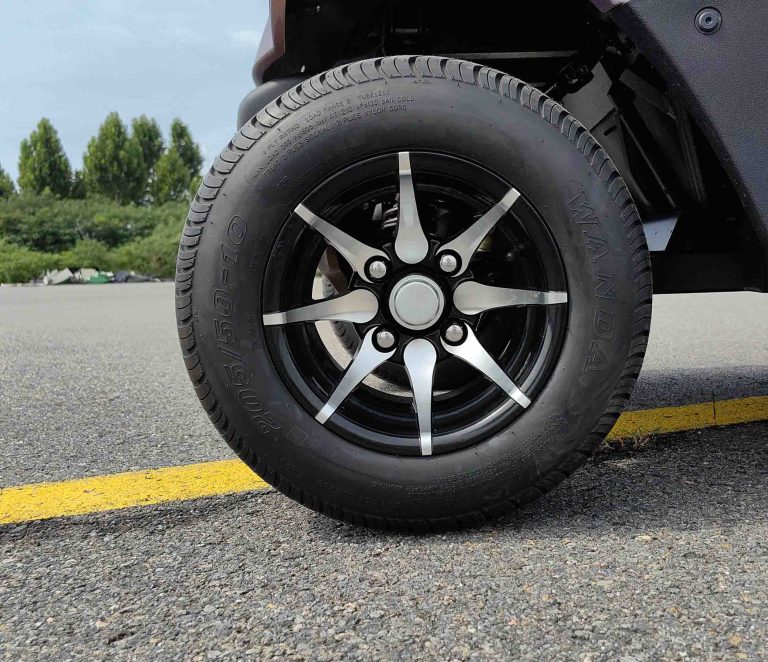

Tire
Diameter 18*8.5-8
Seats
Foam molded core, UV-resistant seat cushion
Front Windscreen
Specialized Acrylic Windshield
Mirrors
Specialized large-angle curved mirrors

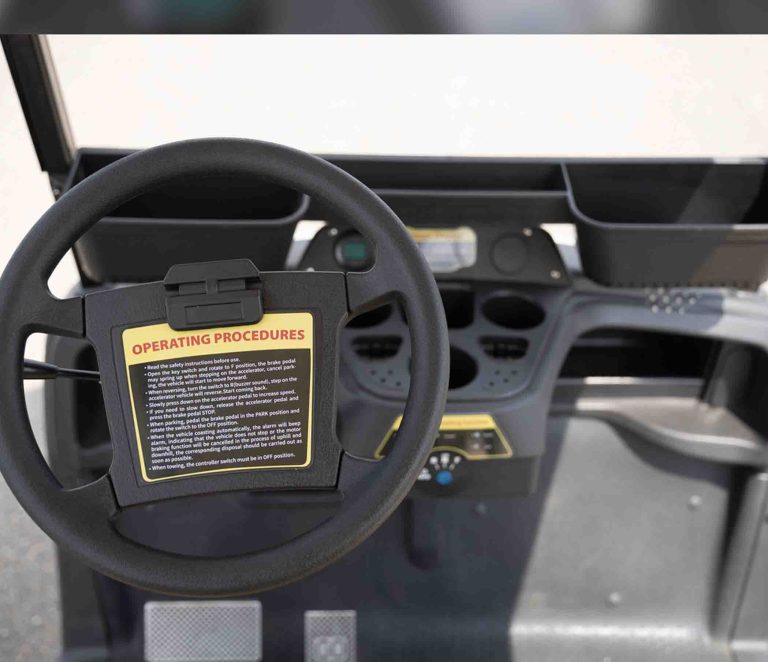

Display Screen:
Battery Capacity Indicator, Vehicle Mounted Electronic Meter
In/Out Switch:
Combination in/out switch
Color Options
Here is an introduction to the colors of PURE EV P20
Sky blue
Ferrari red
Pink
Black
Champagne
Green
LEMON GREEN
RED
YELLOW
SLIVER WHITE
BLUE
WHITE
Parameters
| SPECIFICATION | |
| Size Overall | 3907*1175*1850mm |
| Net Weight | 680kg |
| Rated Passenger | 6 |
| Front/Rear Wheelbase: | 3230mm |
| Front/Rear Wheel Track: | Front885mm/Rear980mm |
| Min Ground Clearance: | 120mm |
| Min Turning RadiusL: | 3.20m |
| Max Speed: | 25MPH |
| Climbing Ability: | 30% |
| Endurance: | 70-80mile |
| ELECTRIC SYSTEM | |
| Motor | 48V5KW AC motor |
| Controller | AC controller |
| Battery Type | Maintenance-free deep cycle lead-acid battery 8V*6 pieces 48V |
| Charger | 48V25A intelligent fully automatic charger |
| DC converter | 48V/12V300W |
| SUSPENSION & BRAKE SYSTEM | |
| Steering system | Bi-directional push rack and pinion steering gear |
| Braking System | Self-adjusting mechanical brake and anti-skid design |
| Rear axle system | Integral infinitely variable rear axle with main reduction and differential |
| Front damping system | Independent suspension, coil springs |
| Rear damping system | Simple hydraulic shock absorbers for steel plate springs |
| EXTERIOR | |
| Front windshield | Special acrylic windshield |
| Body | Body of automobile: ABS with automotive paint（ 4-seater is injection molded with automotive paint;） |
| Ceiling | The 2-seater is ABS injection molding material; the others are thickened blister molding material. |
| Seat | Foam molded core, UV-resistant seat cushion |
| Floor | Wear-resistant and non-slip rubber material |
| Frame | High-strength steel structural parts, electrophoretic surface treatment process |
Optional Accessories List
Add Accessories
Additional accessories enhance your golf cart’s versatility. From practical roof racks to protective rain curtains, these accessories not only increase functionality but also broaden the cart’s adaptability, readying it for any challenge.
Aluminum Alloy Cargo Box
BAK Golf Cart – Green Travel, Enjoy Comfortable Experience
Front storage box
Plastic Cargo Box
Five-Grid Rearview Mirror
Reversing Mirror with Turn Signal
Getting on and off footrest (iron) single unit
Sand Bottle
Steps for getting on and off the vehicle (aluminum alloy)
Steps for getting on and off the vehicle (iron)
Roof Rack
Car Hood
Golf Cart Cover Bag
Rain Curtain
Rear Storage Basket Assembly
Function Upgrade
Function upgrades add intelligence and enjoyment to your golf cart. Roof lighting sets the mood, dashboard speakers provide entertainment, and USB ports ensure convenience, making each journey more pleasant and user-friendly.
Windshield Wipers
one button start
RotarySwitches
Roof off-road Spotlights
Ceiling Atmosphere Lighting
Dashboard speakers
Round Sound Bar
Square Soundbar
Snail Trumpet
Interior Upgrades
Interior upgrades transform your golf cart into a luxurious mobile space. From plush flip seats and elegant dark glass to convenient one-button start, every enhancement elevates comfort and sophistication, making every ride a premium experience.
Water transfer printing instrument panel (with leather grain)
transfer printing instrument panel (without leather grain)
Flip Seat
Dark Brown Flip Glass
Steering Wheel Style Change
Steering Wheel with Integral Clip
3-Point Seat Belt
Custom parts
Custom parts bring unique personalization to your golf cart. From intricate seat embroidery to bespoke controllers, every custom detail reflects the owner’s distinct style. With these customizations, your vehicle becomes a personal statement of identity and taste.
Bumper LOGO customization
Custom Seats with Embroidered LOGO
Front Cover LOGO Customization
Net LOGO Customization
Rain cover with LOGO customization
Flip-Down Storage Box Under Seat with Lock
Golf Cart Charging Gun
Wheel Upgrade
Wheel upgrades provide your golf cart with unmatched adaptability. Whether you choose refined road tires or robust off-road options, each selection ensures smooth and stable driving across diverse terrains, offering a flawless driving experience.
Tire size can be upgraded!
Road Tire
Wheel style can be upgraded！
Rims
Rust-proof Upgrade
Fully electric and zero-emission, the BAK golf cart is not only a means of transportation, but also a loving tribute to high-quality life and a green earth. Diverse choices and personalized colors make every trip a dual declaration of personality and envir.
Semi-Aluminum Frame
Power Upgrade
Power battery upgrades energize your golf cart with sustained power. Choose from 48V200Ah or 72V150Ah batteries to ensure long-lasting performance and extended range, empowering your adventures to go further with confidence.
| Power upgrade | Standard version | Upgrade Ⅰ | Upgrade Ⅱ | Upgrade Ⅲ |
| 48V150Ah | 48V200Ah | 72V100Ah | 72V150Ah | |
| Nominal Voltage (V) | 48 | 48 | 48 | 48 |
| Nominal Capacity(Ah) | 100 | 100 | 100 | 100 |
| Rated Energy(kWh) | 4.8 | 4.8 | 4.8 | 4.8 |
| Cell Material Type | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) |
| Battery Case Materia | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel |
| Battery Weight (kg) | 52 ± 3 | 52 ± 3 | 52 ± 3 | 52 ± 3 |
