Introduction

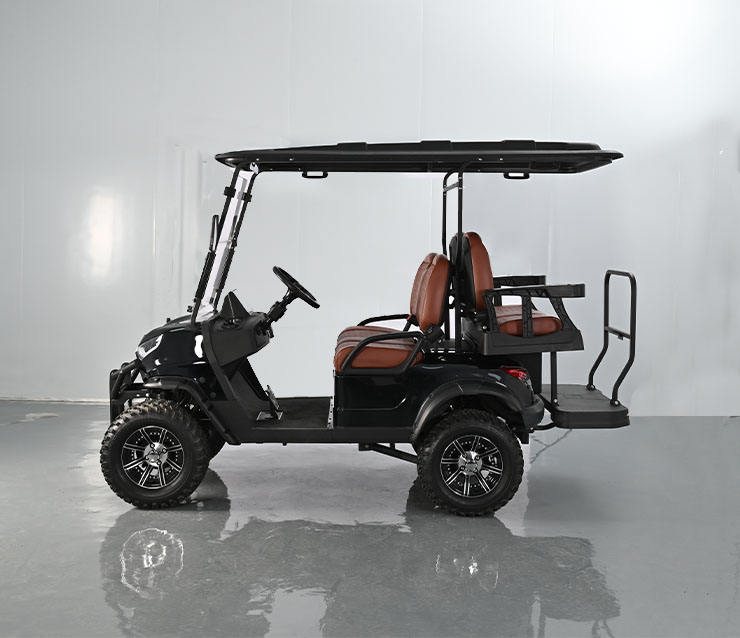

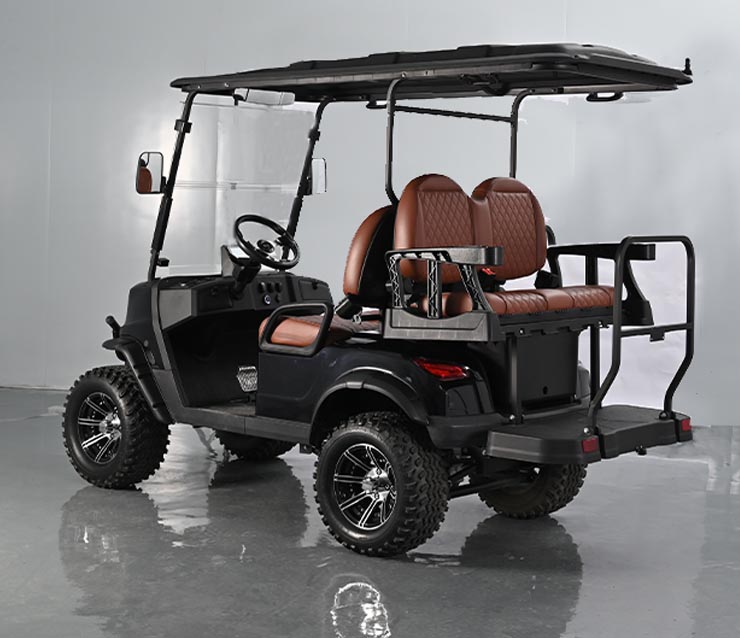

This high chassis 2+2 four-seater golf cart is designed to deliver superior off-road performance and comfort, making it ideal for golf courses, resorts, and rural communities. Its high chassis design provides better ground clearance, allowing it to easily handle uneven terrain while maintaining a smooth driving experience.
The seating layout features two rows of seats, with the front two seats for driving and passengers, and the rear equipped with foldable seats. This flexible design allows for additional passenger space or can be converted into cargo space as needed. The premium leather seats offer maximum comfort and support, perfect for extended rides.
Key Features:
- High Chassis Design: Enhanced ground clearance for tackling complex terrains, offering exceptional driving performance.
- Powerful Electric Drive System: Efficient and quiet electric motor ensures a smooth and silent ride.
- Durable Off-Road Tires: Provides superior traction and stability, suitable for various terrains.

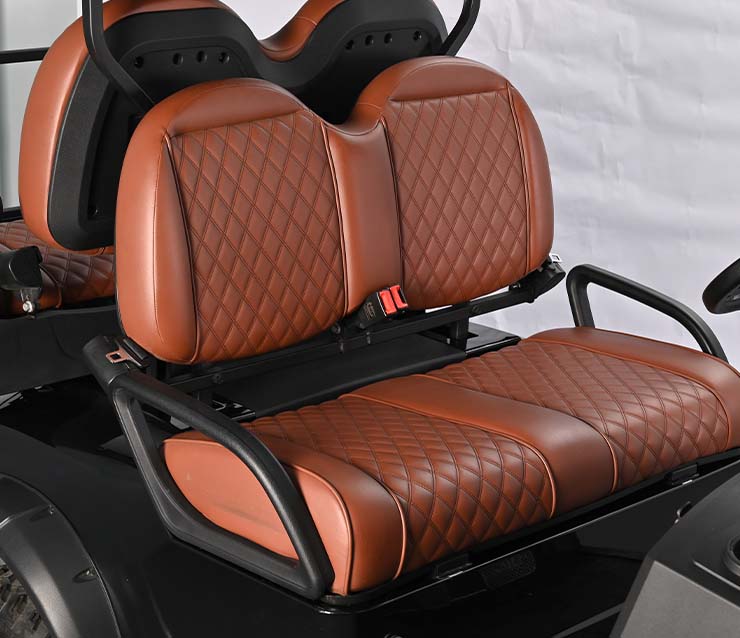

- Luxury Leather Seats: Ergonomically designed for maximum comfort, ensuring a premium seating experience.

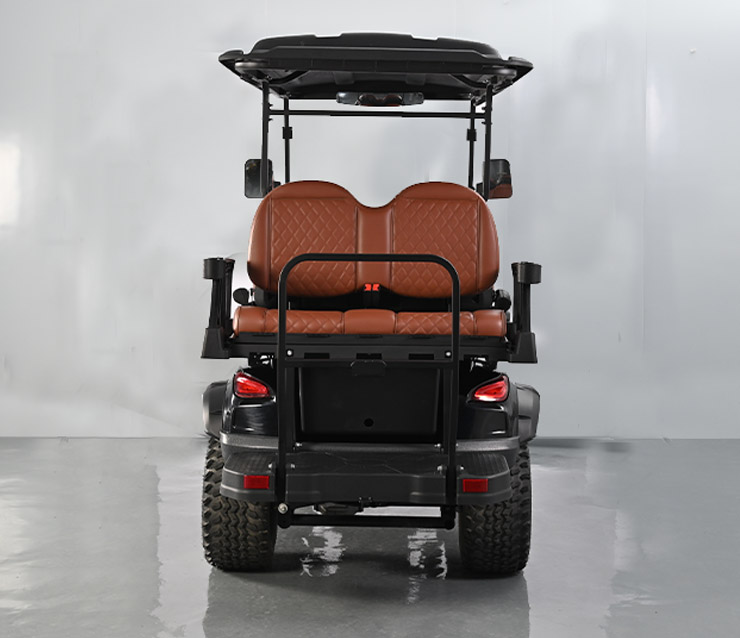

- Foldable Rear Seats: Versatile rear seats that can accommodate passengers or convert into cargo space, meeting different usage needs.

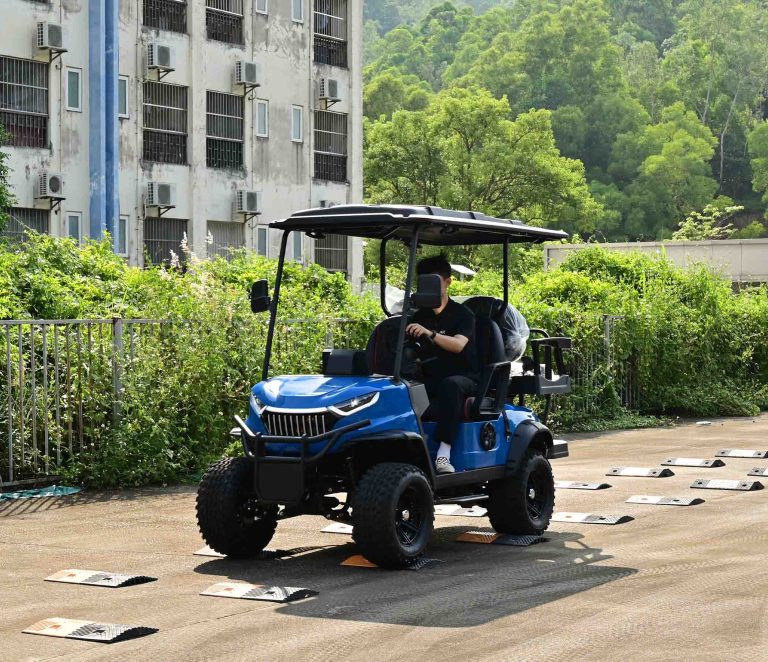

This 2+2 high chassis four-seater cart is not only perfect for daily use on golf courses but also well-suited for transportation in resorts, scenic areas, or communities. It combines off-road capability with luxury comfort, ensuring confident driving in any setting.
Color Options
Here is an introduction to the colors of PURE EV P20
Sky blue
Ferrari red
Pink
Black
Champagne
Green
LEMON GREEN
RED
YELLOW
SLIVER WHITE
BLUE
WHITE
Parameters
| SPECIFICATION | |
| Size Overall | 3050mm*1380mm*2080mm |
| Net Weight | 670KG(with battery) |
| Rated Passenger | 4 |
| Front/Rear Wheelbase | 1740mm |
| Front/Rear Wheel Track | Front975mm/Rear1005mm |
| Min Ground Clearance | 170mm |
| Max Speed | 25MPH |
| Maximum slope | 30% |
| Minimum Turning Radius | 3m |
| Endurance | 80-100 km |
| Braking Distance | ＜5m |
| ELECTRIC SYSTEM | |
| Motor | 48V， AC ，5KW |
| Battery Type | Lithium battery 48V 150Ah |
| Charger | Intelligent Cart Charger 48V/15AH |
| Charger Time | ＜5-6h |
| SUSPENSION &BRAKE SYSTEM | |
| Front suspension | Independent MacPherson front suspension |
| Rear suspension | Integral rear axle+12.3:1 ratiocoil spring dampers + cylindrical hydraulic cartridge dampers+rear stabilizer bars |
| Brake system | 4-wheel hydraulic brakes, 4-wheel disc brakes +electromagnetic brakes for parking (with vehicle towing function) |
| Steering system: | Bidirectional rack and pinion steering system, automatic backlash compensation function |
| EXTERIOR | |

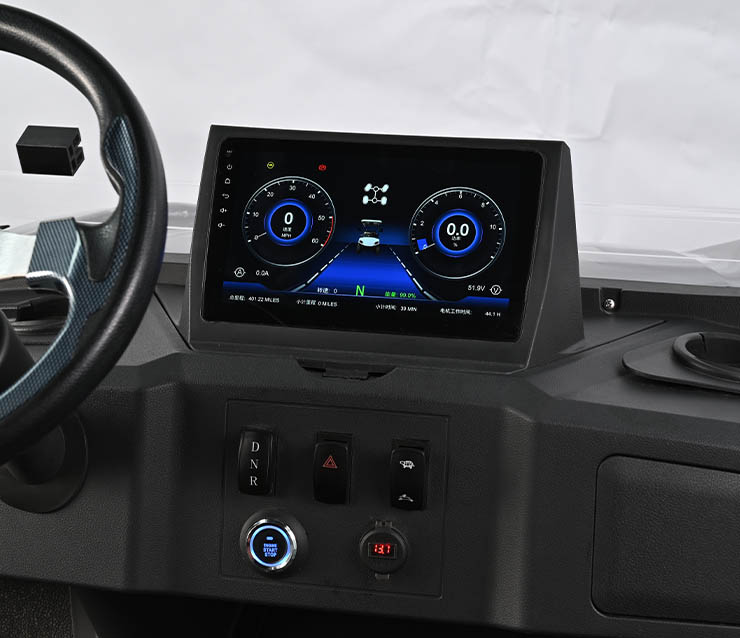

| Display screen | IP65 10.1-inch waterproof LCD multimedia instrument with vehicle detection function |
| Sound system | IP66 Full Range Speaker H065B (with light) |
| Seats | Integral foam moulded seat cushion + Solid color premium imported leather |
| Floors | Rubber anti-slip flooring, high strength structure, corrosion and aging resistant |
| Frame | High-strength sheet metal trapezoidal frame; |
Optional Accessories List
Add Accessories
Additional accessories enhance your golf cart’s versatility. From practical roof racks to protective rain curtains, these accessories not only increase functionality but also broaden the cart’s adaptability, readying it for any challenge.
BAK Golf Cart – Green Travel, Enjoy Comfortable Experience
Front storage box
Aluminum Alloy Cargo Box
Plastic Cargo Box
Function Upgrade
Function upgrades add intelligence and enjoyment to your golf cart. Roof lighting sets the mood, dashboard speakers provide entertainment, and USB ports ensure convenience, making each journey more pleasant and user-friendly.n.
Wheel style can be upgraded！
Rims
BAK Golf Cart – Green Travel, Enjoy Comfortable Experience

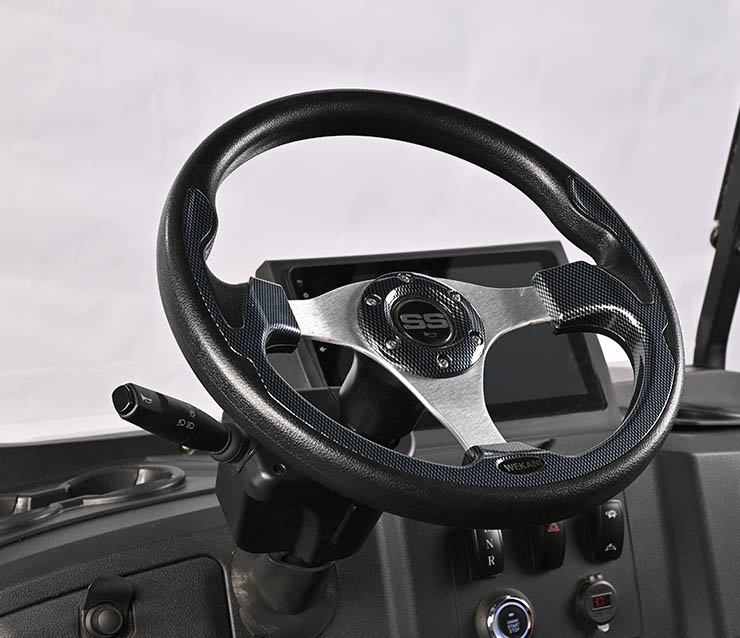

Steering wheel
Windshield Wipers
one button start
RotarySwitches
Roof off-road Spotlights
Ceiling Atmosphere Lighting
Dashboard speakers
Round Sound Bar
Square Soundbar
Snail Trumpet
Interior Upgrades
Interior upgrades transform your golf cart into a luxurious mobile space. From plush flip seats and elegant dark glass to convenient one-button start, every enhancement elevates comfort and sophistication, making every ride a premium experience.
Water transfer printing instrument panel (with leather grain)
transfer printing instrument panel (without leather grain)

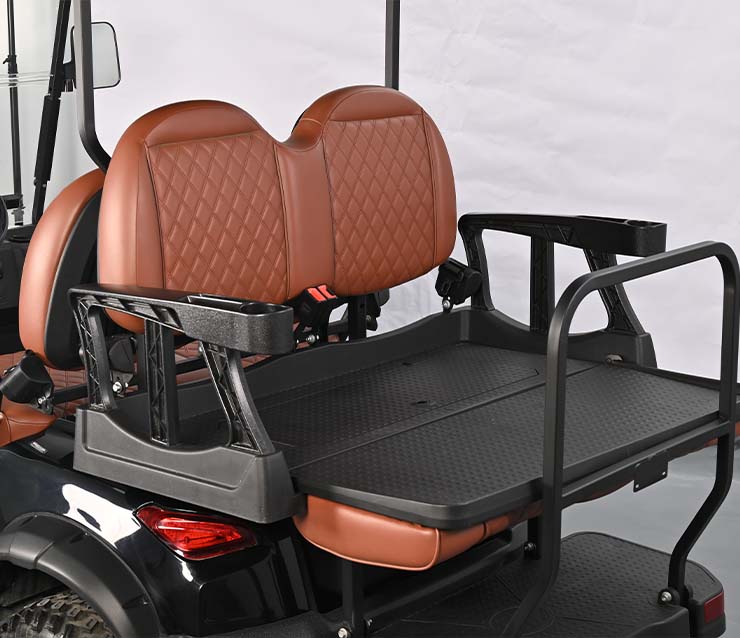

Flip Seat
Dark Brown Flip Glass
Steering Wheel Style Change
Steering Wheel with Integral Clip
3-Point Seat Belt
Custom parts
Custom parts bring unique personalization to your golf cart. From intricate seat embroidery to bespoke controllers, every custom detail reflects the owner’s distinct style. With these customizations, your vehicle becomes a personal statement of identity and taste.
Custom Seats with Embroidered LOGO
Bumper LOGO customization
Front Cover LOGO Customization
Net LOGO Customization
Rain cover with LOGO customization
Flip-Down Storage Box Under Seat with Lock
Golf Cart Charging Gun
Wheel Upgrade
Wheel upgrades provide your golf cart with unmatched adaptability. Whether you choose refined road tires or robust off-road options, each selection ensures smooth and stable driving across diverse terrains, offering a flawless driving experience.
Tire size can be upgraded!
Off-Road Tire
Wheel style can be upgraded！
Rims
Rust-proof Upgrade
Fully electric and zero-emission, the BAK golf cart is not only a means of transportation, but also a loving tribute to high-quality life and a green earth. Diverse choices and personalized colors make every trip a dual declaration of personality and envir.
Semi-Aluminum Frame
Power Upgrade
Power battery upgrades energize your golf cart with sustained power. Choose from 48V200Ah or 72V150Ah batteries to ensure long-lasting performance and extended range, empowering your adventures to go further with confidence.
| Power upgrade | Standard version | Upgrade Ⅰ | Upgrade Ⅱ | Upgrade Ⅲ |
| 48V150Ah | 48V200Ah | 72V100Ah | 72V150Ah | |
| Nominal Voltage (V) | 48 | 48 | 48 | 48 |
| Nominal Capacity(Ah) | 100 | 100 | 100 | 100 |
| Rated Energy(kWh) | 4.8 | 4.8 | 4.8 | 4.8 |
| Cell Material Type | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) |
| Battery Case Materia | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel |
| Battery Weight (kg) | 52 ± 3 | 52 ± 3 | 52 ± 3 | 52 ± 3 |
