Key Features:
🔋 High-Performance Electric Drive System
Equipped with a powerful electric motor and high-capacity battery for strong torque and extended range—ideal for long working hours outdoors.

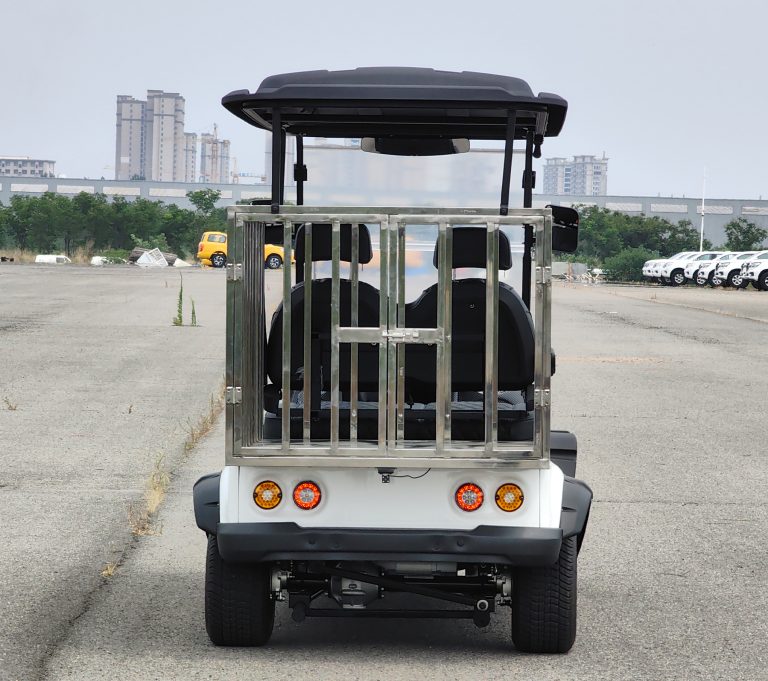

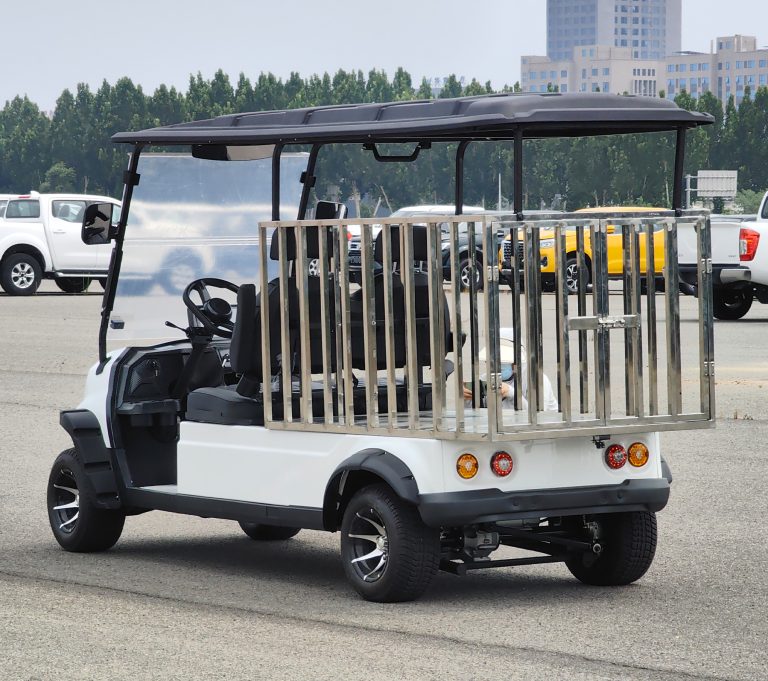

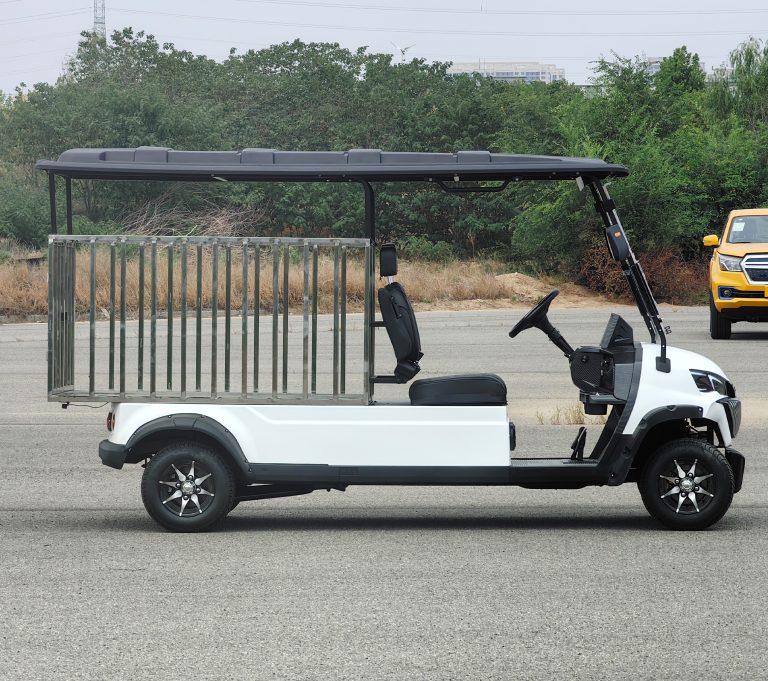

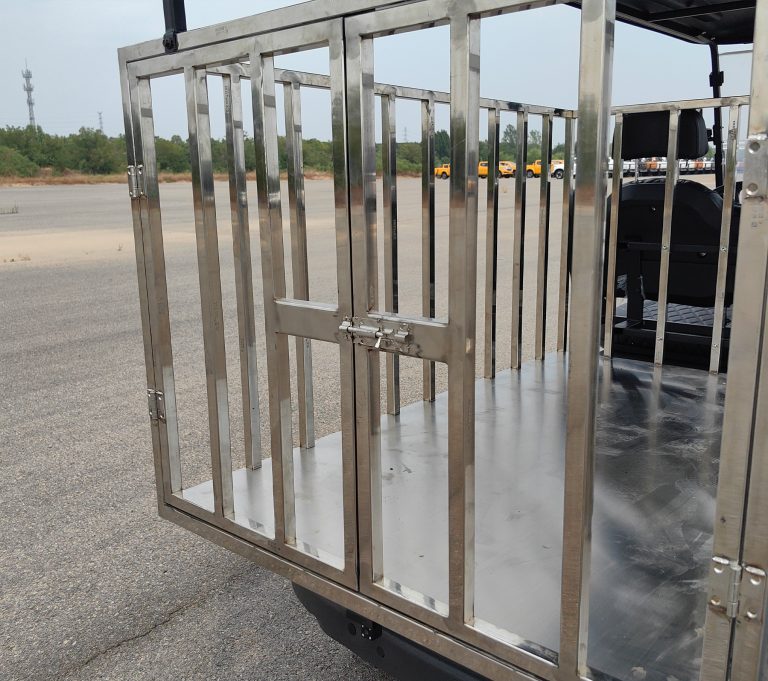

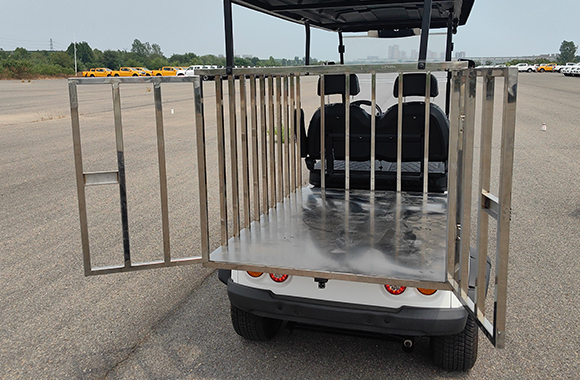

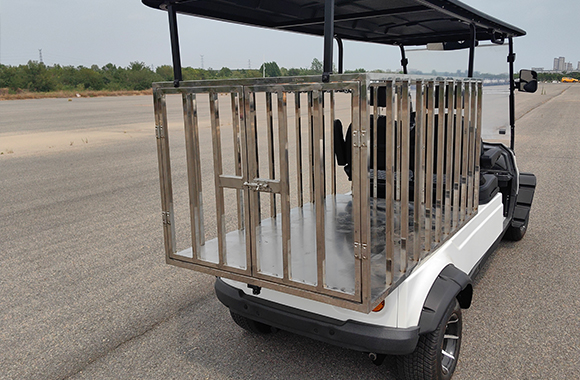

🔧 Reinforced Stainless Steel Cargo Fence
Custom-built cargo area with robust stainless steel fencing—perfect for transporting fencing materials, repair tools, and bulky supplies. Corrosion-resistant and impact-resistant.
💡 Complete Safety Configuration
Includes LED headlights, turn signals, horn, mirrors, and optional safety belt system—ensuring safe operation in complex outdoor environments.
Ideal Applications:
• Fence installation and maintenance on farms or ranches
• Utility site inspections (solar, wind, or electric stations)
• Garden and park facility transport
• Scenic area patrol and logistics
• Residential or commercial fence projects
Parameters
| Model | Electric Fence Vehicle |
| Seating capacity | 2 |
| Configuration | Standard Type |
| Basic technical parameters | |
| External dimensions Length*Width*Height (mm) | 3600*1370*1940 |
| Rated passenger capacity (persons) | 2 |
| Wheelbase (mm) | 2510mm |
| Front track width (mm) | 895mm |
| Rear track width (mm) | 1010mm |
| Curb weight | 600kg |
| Maximum speed (MPH) | 20 |
| Maximum climbing angle | 25% no load; 20% full load |
| Maximum range (miles) | 60-70 km(20 km/h on flat ground) |
| Minimum ground clearance (mm) | 100 |
| Minimum turning radius (m) | 4.8 |
| Braking distance (m) | ＜6 |
| Electrical system | |
| Battery type | Lithium iron phosphate battery |
| Battery capacity | 48V 150Ah |
| Charger | Wide voltage platform 110V/220V universal |
| DC-DC | 300W |
| Motor type | AC motor |
| Motor power | 5kW |
| Electronic control | Sunny |

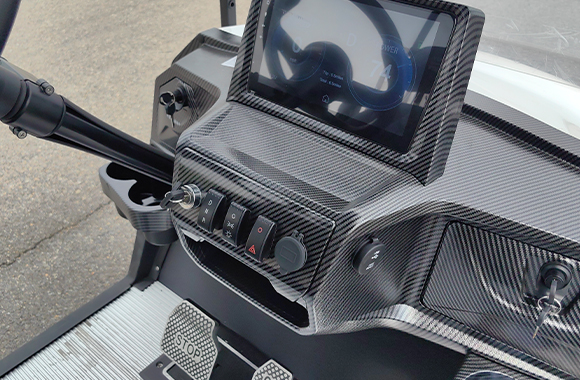

| Central control instrument panel (no logo when powered on) | 10-inch LCD screen |
| AUX data transmission port | ● |
| Front USB charging port | ● |
| Body lighting | LED front combination lights + LED rear tail lights + LED daytime running lights |
| Rearview camera | ● |
| Chassis System | |
| Front suspension | Double wishbone independent suspension |
| Rear suspension | Trailing arm non-independent suspension |
| Rear axle gear ratio | 12.3:1 |

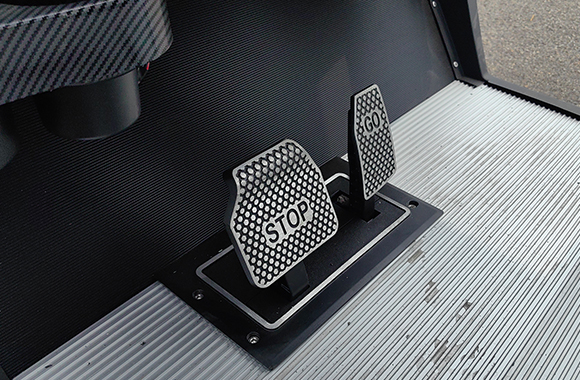

| Braking system | Four-wheel hydraulic brakes + electromagnetic brakes |

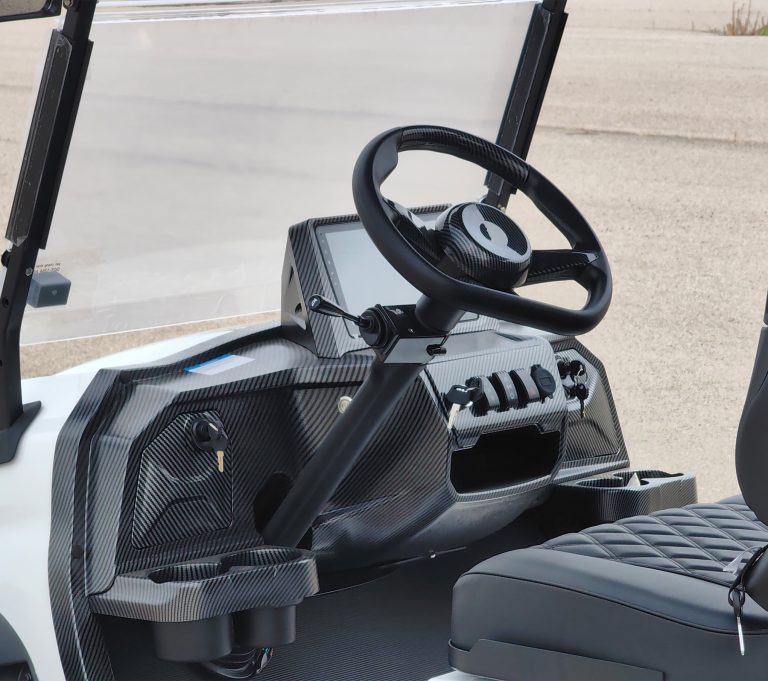

| Steering system | Dual-direction mechanical gear rack steering gear |

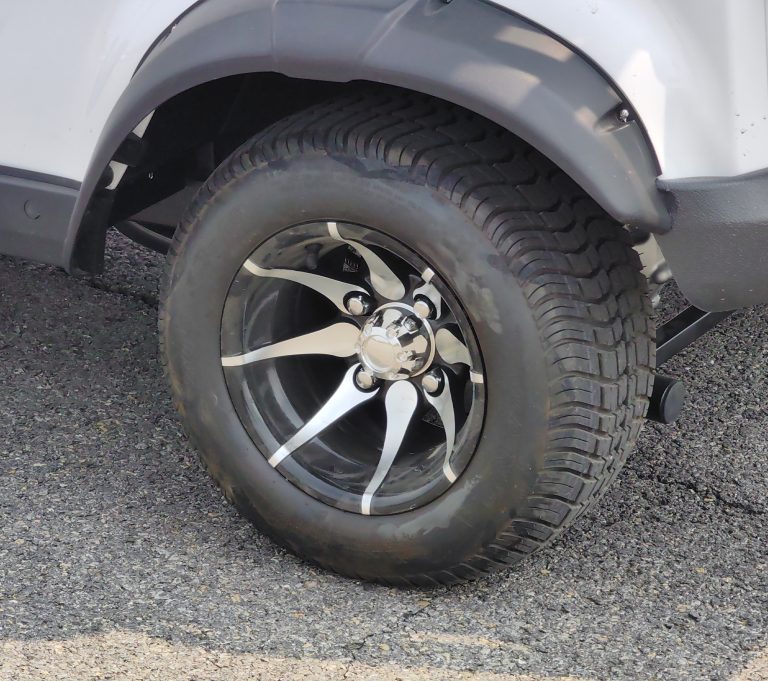

| Tire type | Road tires |
| Tire specifications | 10-inch |
| Wheel rim material | Aluminum alloy |
| Body trim parts | |

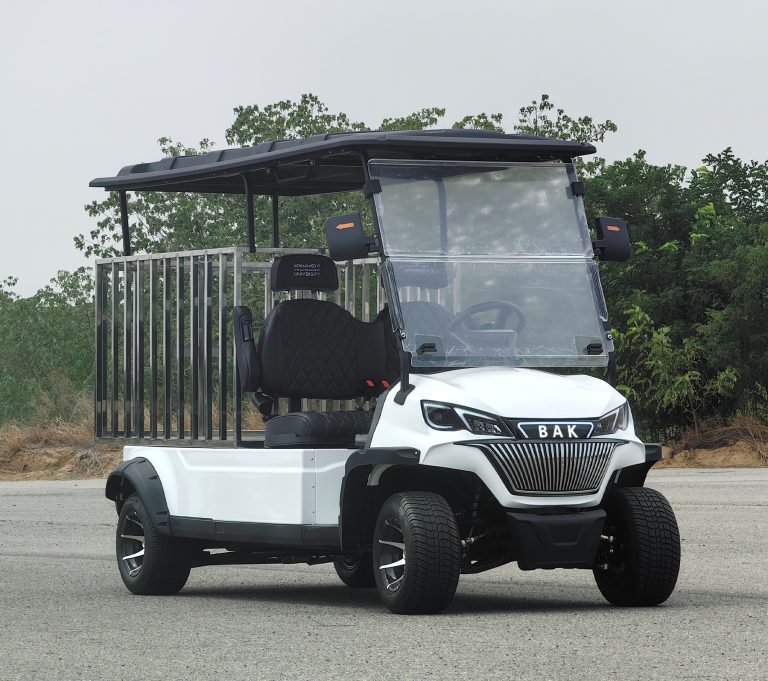

| Grille color | Chrome-plated silver |
| Front windshield | Transparent flip-up glass |
| Roof lining | Matte black square tube frame + PP black injection-molded roof |
| Water transfer printed dashboard | ● |

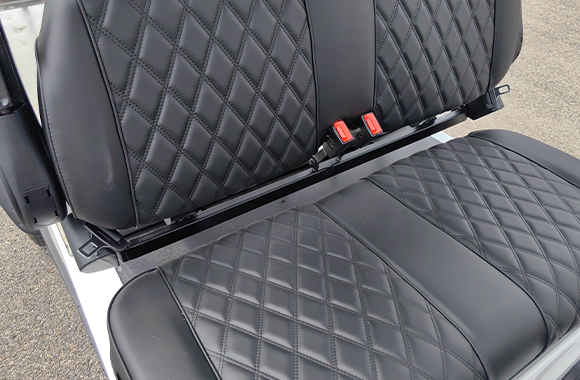

| Two-point seatbelts | ● |
| Floor material | Aluminum alloy floor |
| Turn signal mirrors | ● |
| Front bumper material | Plastic |
Optional Accessories List
Add Accessories
Additional accessories enhance your golf cart’s versatility. From practical roof racks to protective rain curtains, these accessories not only increase functionality but also broaden the cart’s adaptability, readying it for any challenge.
BAK Golf Cart – Green Travel, Enjoy Comfortable Experience
Front storage box
Aluminum Alloy Cargo Box
Plastic Cargo Box
Five-Grid Rearview Mirror

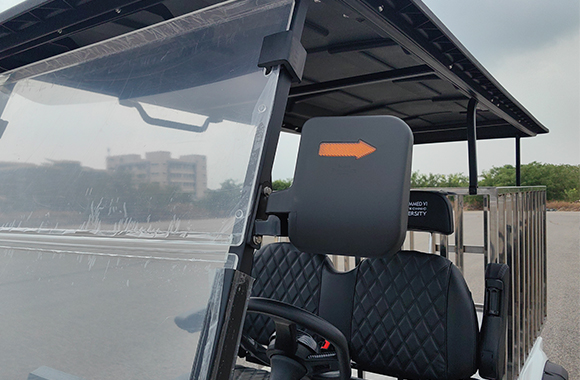

Reversing Mirror with Turn Signal
Getting on and off footrest (iron) single unit
Sand Bottle
Steps for getting on and off the vehicle (aluminum alloy)
Steps for getting on and off the vehicle (iron)
Roof Rack
Ball Washer
Car Hood
Golf Cart Cover Bag
Rain Curtain
Rear Storage Basket Assembly
Function Upgrade
Function upgrades add intelligence and enjoyment to your golf cart. Roof lighting sets the mood, dashboard speakers provide entertainment, and USB ports ensure convenience, making each journey more pleasant and user-friendly.
Wheel style can be upgraded！
Rims
BAK Golf Cart – Green Travel, Enjoy Comfortable Experience
Steering wheel
Interior Upgrades
Interior upgrades transform your golf cart into a luxurious mobile space. From plush flip seats and elegant dark glass to convenient one-button start, every enhancement elevates comfort and sophistication, making every ride a premium experience.
Water transfer printing instrument panel (with leather grain)
transfer printing instrument panel (without leather grain)
Flip Seat
Dark Brown Flip Glass
Steering Wheel Style Change
Steering Wheel with Integral Clip
3-Point Seat Belt
Custom parts
Custom parts bring unique personalization to your golf cart. From intricate seat embroidery to bespoke controllers, every custom detail reflects the owner’s distinct style. With these customizations, your vehicle becomes a personal statement of identity and taste.
Bumper LOGO customization
Custom Seats with Embroidered LOGO
Front Cover LOGO Customization
Net LOGO Customization
Rain cover with LOGO customization
Flip-Down Storage Box Under Seat with Lock
Golf Cart Charging Gun
Wheel Upgrade
Wheel upgrades provide your golf cart with unmatched adaptability. Whether you choose refined road tires or robust off-road options, each selection ensures smooth and stable driving across diverse terrains, offering a flawless driving experience.
Tire size can be upgraded!
Off-Road Tire
Wheel style can be upgraded！
Rims
Rust-proof Upgrade
Fully electric and zero-emission, the BAK golf cart is not only a means of transportation, but also a loving tribute to high-quality life and a green earth. Diverse choices and personalized colors make every trip a dual declaration of personality and envir.
Semi-Aluminum Frame
Power Upgrade
Power battery upgrades energize your golf cart with sustained power. Choose from 48V200Ah or 72V150Ah batteries to ensure long-lasting performance and extended range, empowering your adventures to go further with confidence.
| Power upgrade | Standard version | Upgrade Ⅰ | Upgrade Ⅱ | Upgrade Ⅲ |
| 48V150Ah | 48V200Ah | 72V100Ah | 72V150Ah | |
| Nominal Voltage (V) | 48 | 48 | 48 | 48 |
| Nominal Capacity(Ah) | 100 | 100 | 100 | 100 |
| Rated Energy(kWh) | 4.8 | 4.8 | 4.8 | 4.8 |
| Cell Material Type | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) |
| Battery Case Materia | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel |
| Battery Weight (kg) | 52 ± 3 | 52 ± 3 | 52 ± 3 | 52 ± 3 |
