Introduction

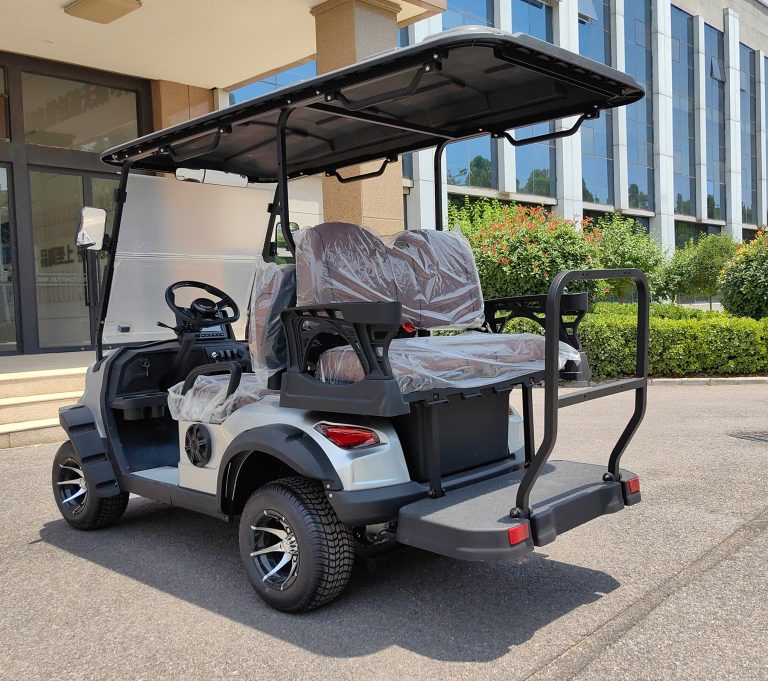

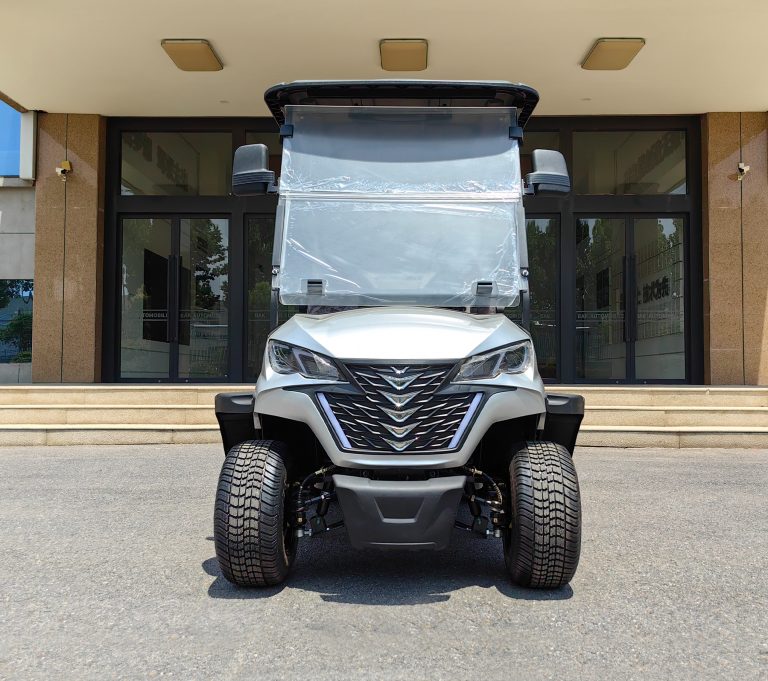

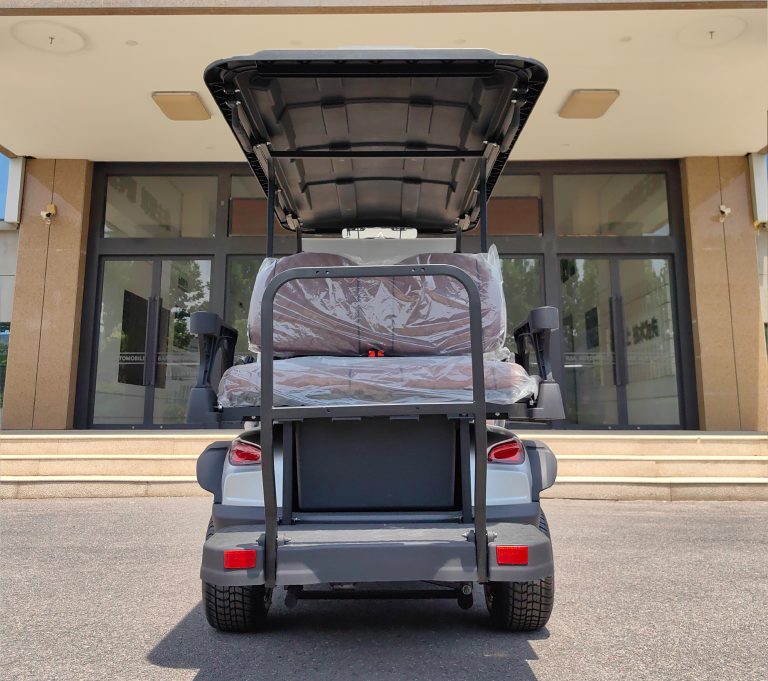

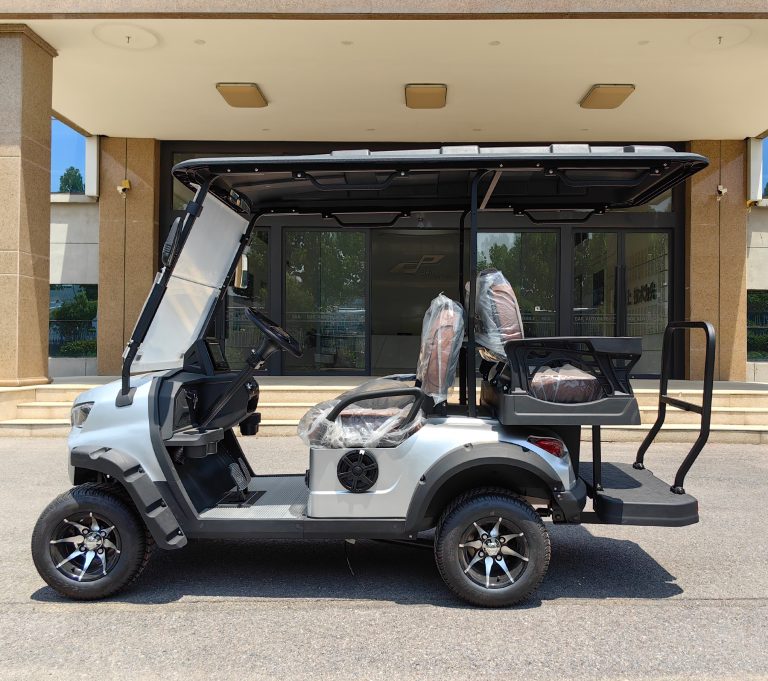

The G-C2+2 is a versatile 4-seat golf cart designed to meet the transportation needs of hotels, airports, and scenic spots. Equipped with advanced suspension and a powerful 72V AC motor, it provides a stable and comfortable ride on various terrains. The cart’s design ensures excellent traction and control, making it ideal for both passengers and cargo.
One of the key features of the G-C2+2 is its option for a high-capacity lithium battery, which extends operating time and reduces charging frequency. This makes it a practical choice for businesses that require continuous use throughout the day. The G-C2+2 combines reliability with convenience, making it a top choice for both personal and commercial applications.
With its sleek design and superior performance, the G-C2+2 offers an excellent balance of functionality and style. Whether navigating through crowded areas or exploring scenic spots, this cart delivers a smooth and efficient driving experience.
Tyres
DOT Approved; Road tires 205/50 (4 Ply Rated)/ tires
Lights

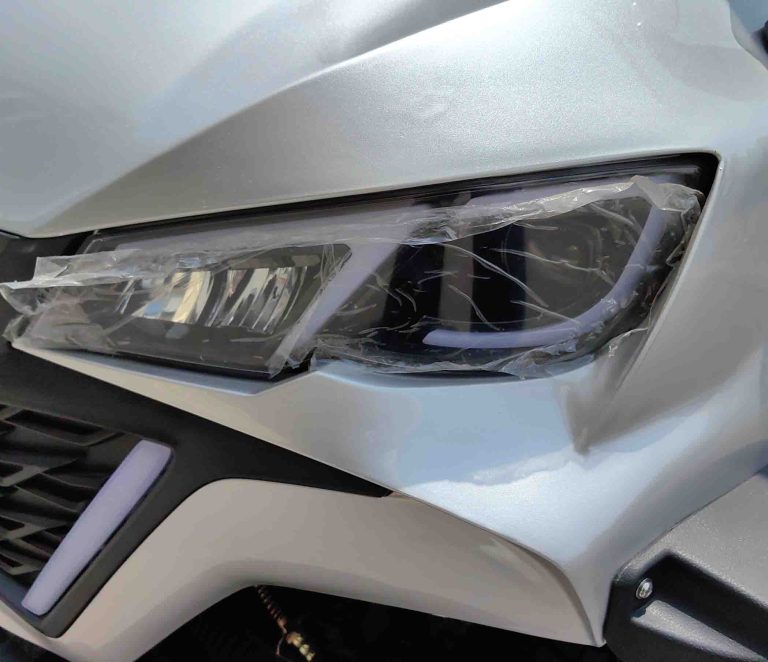

LED front combination lights (low beam, high beam, turn signal, daytime running light, position light)
Mirrors
One manually adjustable, foldable exterior mirror on each side; wide-angle centre mirror
Front Windscreen
DOT Approved reversible glass
Sound System
IP66 Full Range Speaker H065B (with light)
Seat Belts
DOT approved two-point seat belts
Color Options
Here is an introduction to the colors of PURE EV P20
Sky blue
Ferrari red
Pink
Black
Champagne
Green
LEMON GREEN
RED
YELLOW
SLIVER WHITE
BLUE
WHITE
Parameters
| BASIC PARAMETERS | |
| Exterior dimensions L * W * H (mm) | 2975*1340*1950 |
| Rated passenger capacity (persons) | 4 |
| Wheelbase (mm) | 1660 |
| Front track (mm) | 931 |
| Rear track (mm) | 1030 |
| Curb weight | ≦530kg(including battery) |
| Maximum speed (MPH) | 20 |
| Maximum climbing grade | 30% unloaded; 25% fully loaded |
| Maximum driving range (mile) | 60-70(Flat Road 30km/h) |
| Minimum ground clearance (mm) | 100 |
| Minimum turning radius (m) | 3.15 |
| Braking distance (m) | ＜3.5 |
| ELECTRICAL SYSTEM | |
| Battery type | BAK self-developed LiFePO4 battery |
| Battery capacity | 48V150Ah |
| Charger | Wide voltage platform 110V/220V universal |
| DC-DC | 300W |
| Motor | KDS 5kW，AC motor |

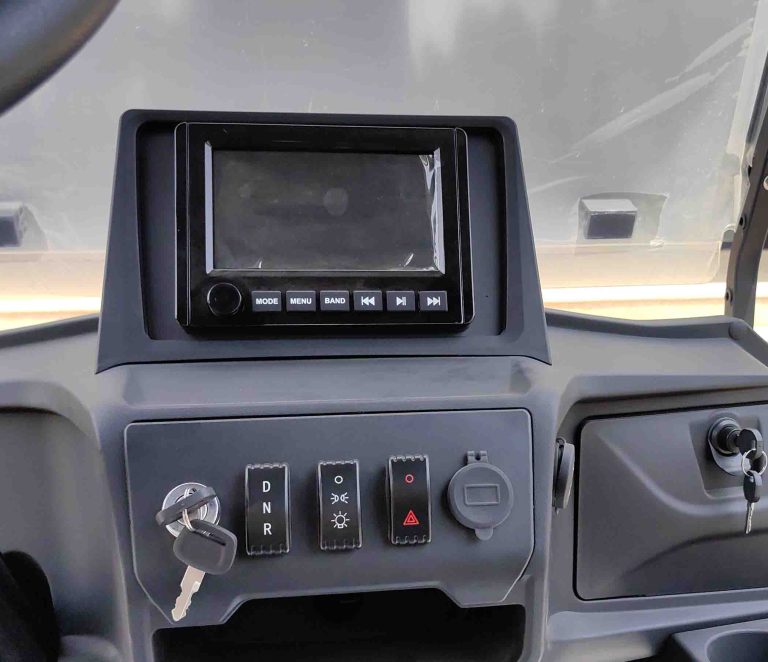

| Central control instrument | 10-inch LCD screen |
| Speaker | Round speaker 6 inches x2, with ambient light |
| Instrument panel components | Forward/neutral/reverse switch, USB and AUX data transmission port, key switch, instrument panel |
| Body lights | LED front combination lights + LED taillights + LED daytime running lights |
| CHASSIS SYSTEM | |
| Chassis | Welded steel (extrusion mold forming) with dual electrophoresis treatment + paint and baking finish |
| Front suspension | Double wishbone independent suspension |
| Rear suspension | Trailing arm non-independent suspension |
| Rear axle ratio | 12.3:1 |
| Braking system | Four-wheel hydraulic brake + electromagnetic brake |
| Steering system | Bi-directional mechanical rack-and-pinion steering |

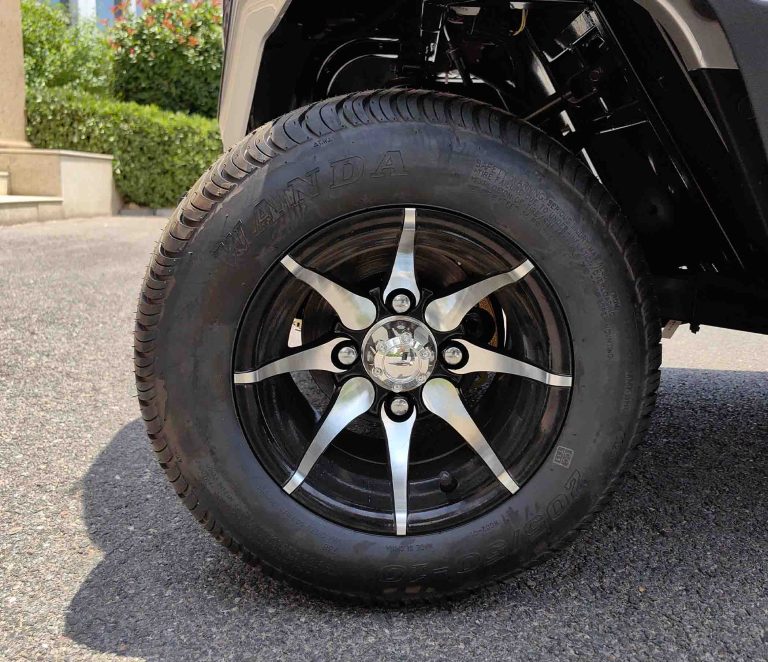

| Tire type | 10-inch all-terrain tires |
| BODY TRIM | |

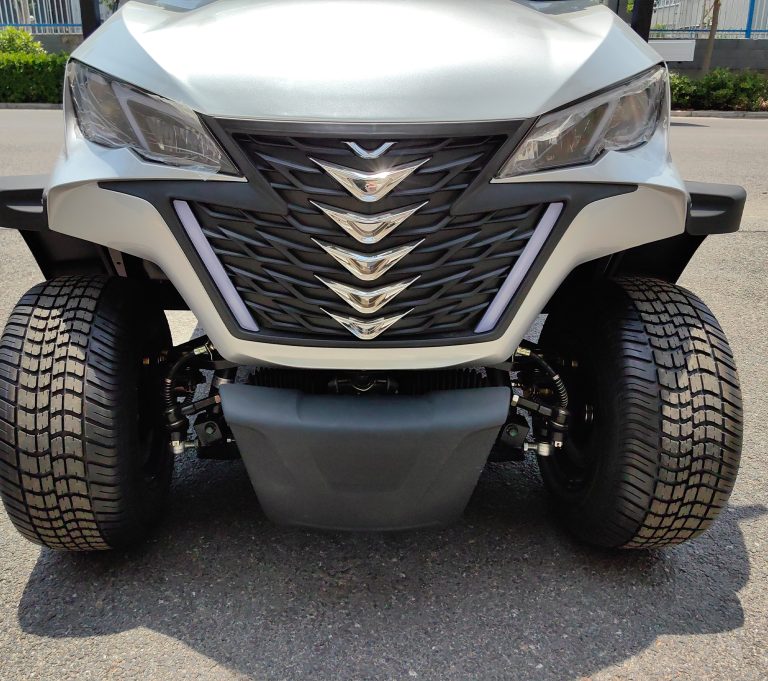

| Grill color | Electroplated silver |
| Front windshield | Foldable Acrylic |
| Roof | Matte black square tube frame + black PP injection-molded roof |
| Safety restraint device | 2-point retractable side waist restraint seat belts |
| Floor material | Aluminum profile flooring, more durable |
| Rearview mirror | Standard fully adjustable and foldable mirrors |
| Front bumper material | Metal |
| Body color | Metallic paint (customizable color) |
Optional Accessories List
Function Upgrade
Function upgrades add intelligence and enjoyment to your golf cart. Roof lighting sets the mood, dashboard speakers provide entertainment, and USB ports ensure convenience, making each journey more pleasant and user-friendly.
Windshield Wipers
one button start
RotarySwitches
Roof off-road Spotlights
Ceiling Atmosphere Lighting
Dashboard speakers
Round Sound Bar
Square Soundbar
Snail Trumpet
Add Accessories
Additional accessories enhance your golf cart’s versatility. From practical roof racks to protective rain curtains, these accessories not only increase functionality but also broaden the cart’s adaptability, readying it for any challenge.
BAK Golf Cart – Green Travel, Enjoy Comfortable Experience
Front storage box
Plastic Cargo Box
Aluminum Alloy Cargo Box
Five-Grid Rearview Mirror
Reversing Mirror with Turn Signal
Getting on and off footrest (iron) single unit
Sand Bottle
Steps for getting on and off the vehicle (aluminum alloy)
Steps for getting on and off the vehicle (iron)
Roof Rack
Ball Washer
Car Hood
Golf Cart Cover Bag
Rear Storage Basket Assembly
Interior Upgrades
Interior upgrades transform your golf cart into a luxurious mobile space. From plush flip seats and elegant dark glass to convenient one-button start, every enhancement elevates comfort and sophistication, making every ride a premium experience.
Water transfer printing instrument panel (with leather grain)
transfer printing instrument panel (without leather grain)
Flip Seat
Dark Brown Flip Glass

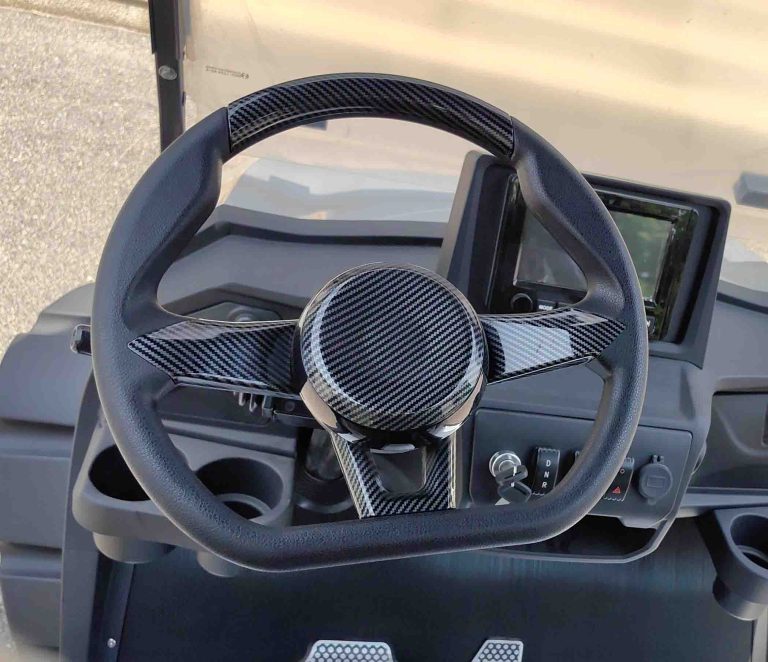

Steering Wheel Style Change
Steering Wheel with Integral Clip
3-Point Seat Belt
Custom parts
Custom parts bring unique personalization to your golf cart. From intricate seat embroidery to bespoke controllers, every custom detail reflects the owner’s distinct style. With these customizations, your vehicle becomes a personal statement of identity and taste.
Bumper LOGO customization
Front Cover LOGO Customization
Net LOGO Customization
Rain cover with LOGO customization
Custom Seats with Embroidered LOGO
Flip-Down Storage Box Under Seat with Lock
Golf Cart Charging Gun
Wheel Upgrade
Wheel upgrades provide your golf cart with unmatched adaptability. Whether you choose refined road tires or robust off-road options, each selection ensures smooth and stable driving across diverse terrains, offering a flawless driving experience.
Tire size can be upgraded!
Road Tire
Wheel style can be upgraded！
Rims
Rust-proof Upgrade
Fully electric and zero-emission, the BAK golf cart is not only a means of transportation, but also a loving tribute to high-quality life and a green earth. Diverse choices and personalized colors make every trip a dual declaration of personality and envir
Semi-Aluminum Frame
Power Upgrade
Power battery upgrades energize your golf cart with sustained power. Choose from 48V200Ah or 72V150Ah batteries to ensure long-lasting performance and extended range, empowering your adventures to go further with confidence.
| Power upgrade | Standard version | Upgrade Ⅰ | Upgrade Ⅱ | Upgrade Ⅲ |
| 48V150Ah | 48V200Ah | 72V100Ah | 72V150Ah | |
| Nominal Voltage (V) | 48 | 48 | 48 | 48 |
| Nominal Capacity(Ah) | 100 | 100 | 100 | 100 |
| Rated Energy(kWh) | 4.8 | 4.8 | 4.8 | 4.8 |
| Cell Material Type | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) |
| Battery Case Materia | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel |
| Battery Weight (kg) | 52 ± 3 | 52 ± 3 | 52 ± 3 | 52 ± 3 |
