Introduction
The K-C2 club car redefines luxury and comfort in short-distance travel, offering a private and dignified mobile space for exclusive clubs, hotels, and private estates. Designed for those who appreciate elegance and functionality, the K-C2 provides an unparalleled experience in personal transportation.

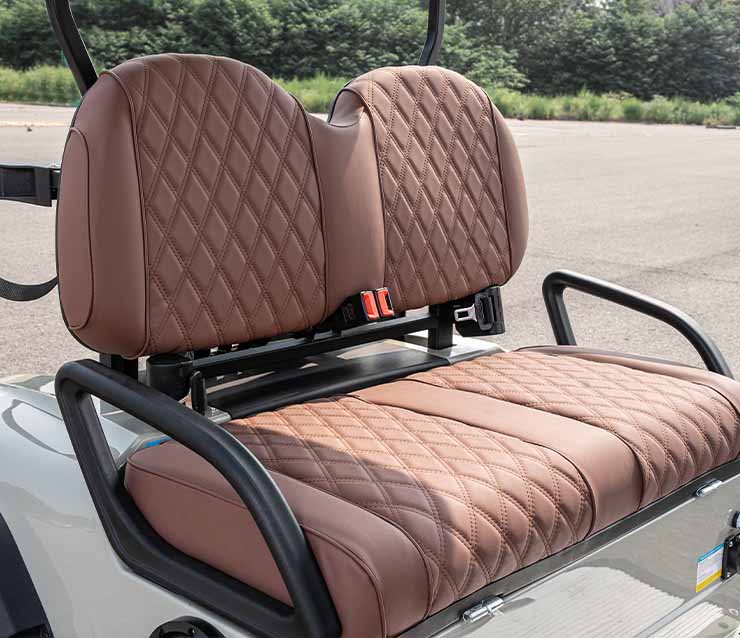

With a meticulously crafted interior, the K-C2 offers a spacious love seat wrapped in top-tier materials, ensuring a luxurious atmosphere reminiscent of a five-star hotel. The advanced silent drive system delivers powerful yet peaceful performance, while the one-click start and intelligent controls make driving effortless. The K-C2 also emphasizes environmental responsibility with low energy consumption and zero emissions, making it a symbol of sophistication and eco-conscious living.
Body of Automobile
Front cover, seat bucket, body, rear end injection moulded one-piece body covering parts; plastic sprayed black square tube ceiling columns
Dashboard
Injection-moulded dashboard, waterproof two-position electric lock switch, single-arm combination switch, cup holder; 12V Power Supply, USB+Type-c fast charging, USB External Audio
Floors
Aluminium alloy profile anti-slip flooring, high strength structure, corrosion and ageing resistant

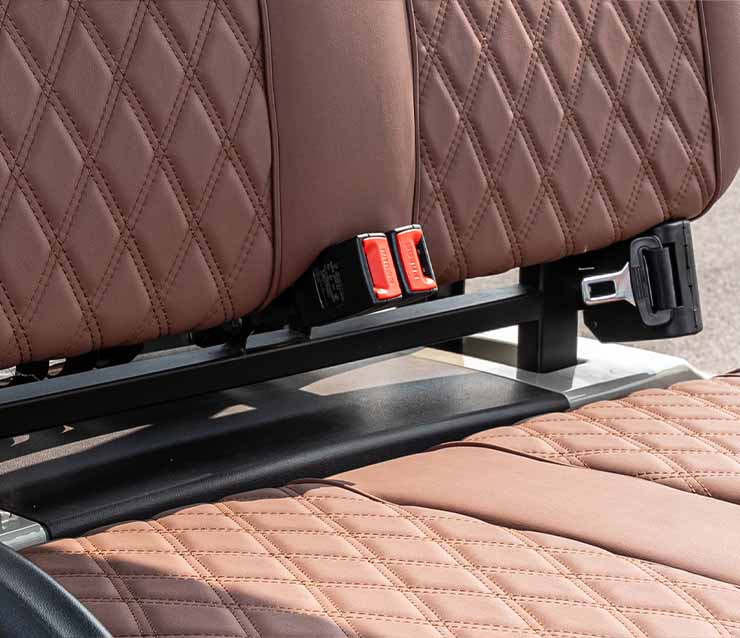

Seat Belts
DOT approved two-point seat belts
Display Screen
IP66 7-inch waterproof LCD multimedia instrument with vehicle detection function
Ceiling
Frosted black square tube frame + PP injection moulded one-piece canopy
Color Options
Here is an introduction to the colors of PURE EV P20
Sky blue
Ferrari red
Pink
Black
Champagne

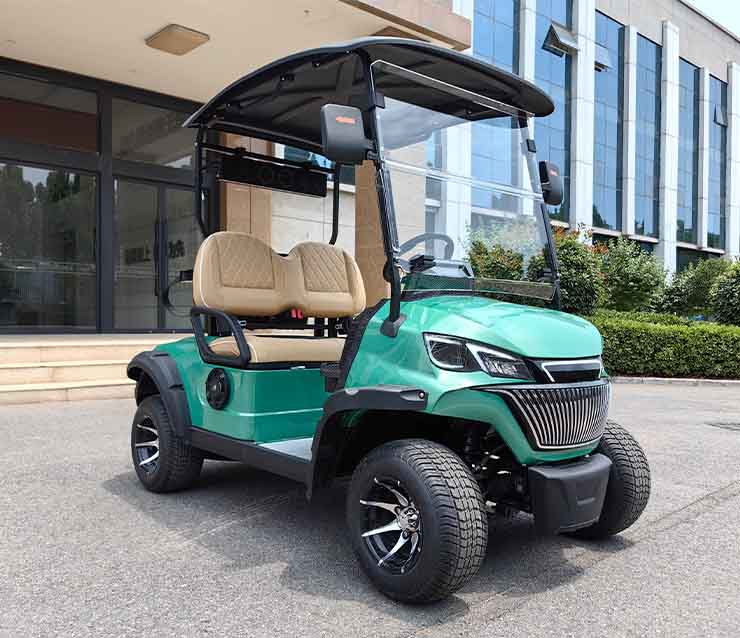

Green
LEMON GREEN
RED
YELLOW
SLIVER WHITE
BLUE
WHITE
Parameters
| BASIC PARAMETERS | |
| Exterior dimensions L * W * H (mm) | 2460*1340*1910 |
| Rated passenger capacity (persons) | 2 |
| Wheelbase (mm) | 1660 |
| Front track (mm) | 930 |
| Rear track (mm) | 1030 |
| Curb weight | ≦470kg(including battery) |
| Maximum speed (MPH) | 20 |
| Maximum climbing grade | 0.25 |
| Maximum driving range (mile) | 60-80(on flat road) |
| Minimum ground clearance (mm) | 100 |
| Minimum turning radius (m) | 3.15 |
| Braking distance (m) | ＜3.5 |
| ELECTRICAL SYSTEM | |
| Battery type | BAK self-developed LiFePO4 battery |
| Battery capacity | 48V100Ah |
| Charger | Wide voltage platform 110V/220V universal |
| DC-DC | 300W |
| Motor | KDS 5kW，AC motor |
| Central control instrument | 10-inch LCD screen |

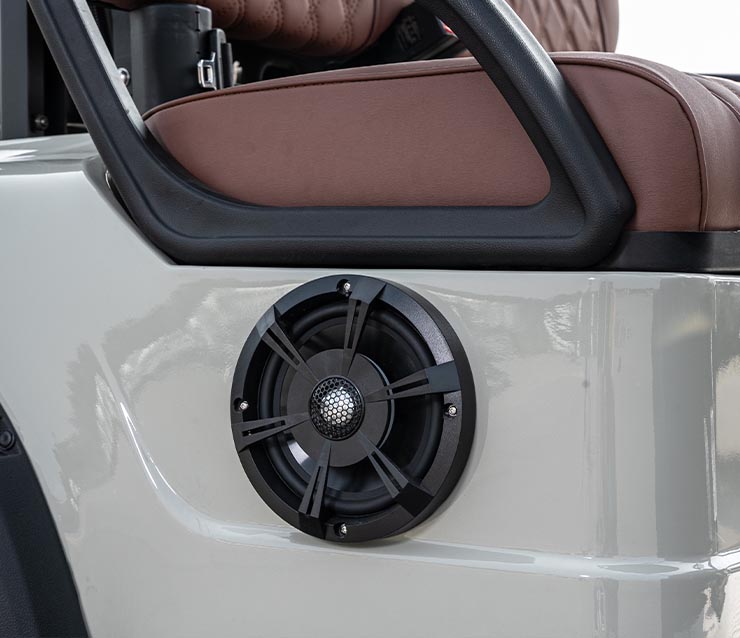

| Speaker | Round speaker 6 inches x2, with ambient light |
| Instrument panel components | Forward/neutral/reverse switch, USB and AUX data transmission port, key switch, instrument panel |
| Body lights | LED front combination lights + LED taillights + LED daytime running lights |
| CHASSIS SYSTEM | |
| Chassis | Welded steel (extrusion mold forming) with dual electrophoresis treatment + paint and baking finish |
| Front suspension | Double wishbone independent suspension |
| Rear suspension | Trailing arm non-independent suspension |
| Rear axle ratio | 14.2:1 |
| Braking system | Four-wheel hydraulic brake + electromagnetic brake |
| Steering system | Bi-directional mechanical rack-and-pinion steering |
| Tire type | 10-inch all-terrain tires |
| BODY TRIM | |
| Grill color | Electroplated silver |
| Front windshield | Foldable Acrylic |
| Roof | Matte black square tube frame + black PP injection-molded roof |
| Safety restraint device | 2-point retractable side waist restraint seat belts |
| Floor material | Aluminum profile flooring, more durable |
| Rearview mirror | Standard fully adjustable and foldable mirrors |
| Front bumper material | Metal |
| Body color | Metallic paint (customizable color) |
Optional Accessories List
Function Upgrade
Function upgrades add intelligence and enjoyment to your golf cart. Roof lighting sets the mood, dashboard speakers provide entertainment, and USB ports ensure convenience, making each journey more pleasant and user-friendly.
Windshield Wipers
one button start
RotarySwitches
Roof off-road Spotlights
Ceiling Atmosphere Lighting
Dashboard speakers
Round Sound Bar

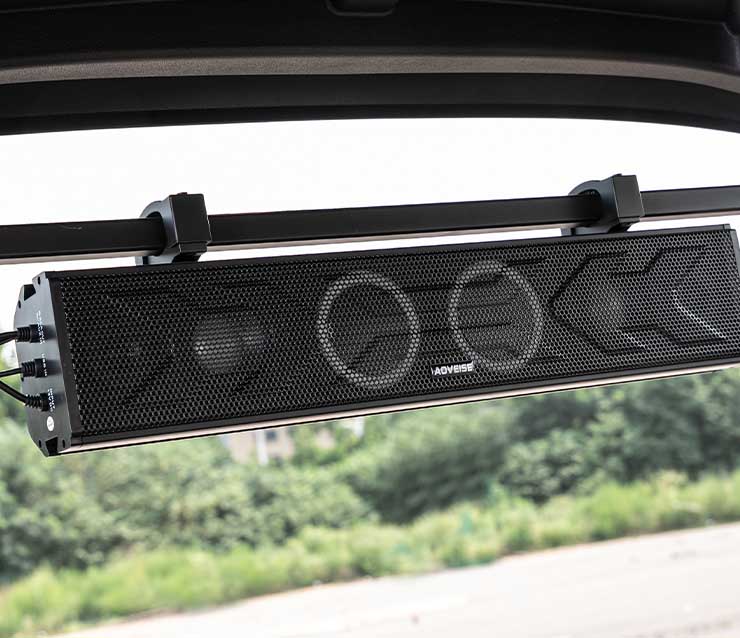

Square Soundbar
Snail Trumpet
Add Accessories
Additional accessories enhance your golf cart’s versatility. From practical roof racks to protective rain curtains, these accessories not only increase functionality but also broaden the cart’s adaptability, readying it for any challenge.
Plastic Cargo Box
BAK Golf Cart – Green Travel, Enjoy Comfortable Experience
Front storage box
Aluminum Alloy Cargo Box

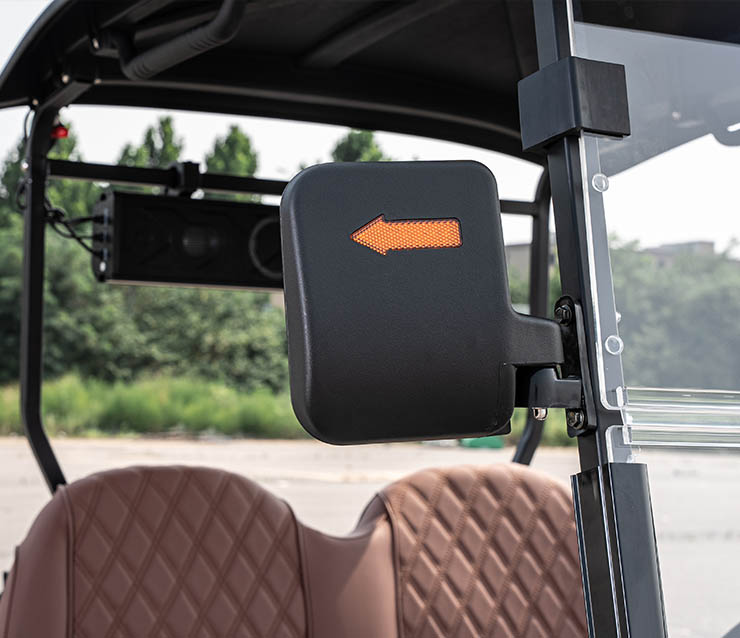

Reversing Mirror with Turn Signal
Five-Grid Rearview Mirror
Getting on and off footrest (iron) single unit
Sand Bottle
Steps for getting on and off the vehicle (iron)
Steps for getting on and off the vehicle (aluminum alloy)
Roof Rack
Ball Washer
Car Hood
Golf Cart Cover Bag
Rain Curtain

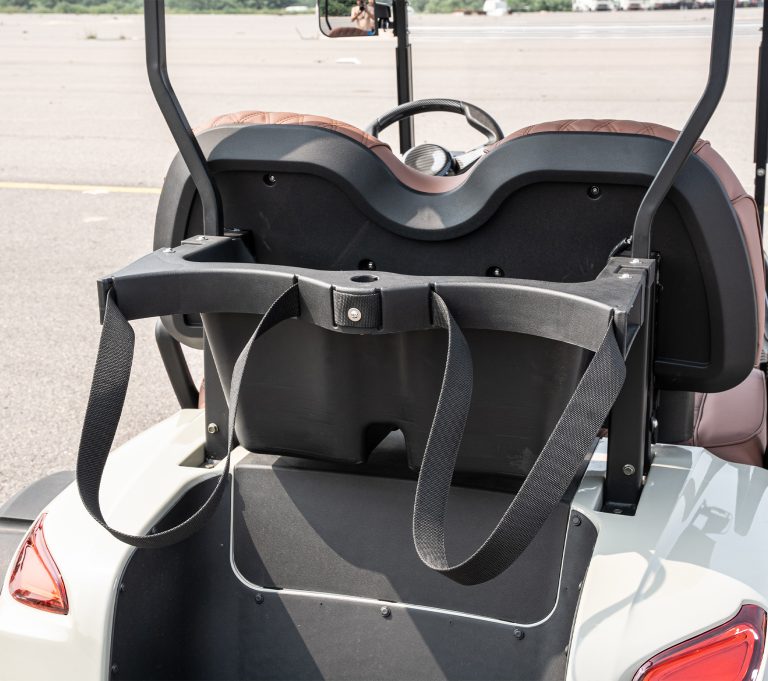

Rear Storage Basket Assembly
Interior Upgrades
Interior upgrades transform your golf cart into a luxurious mobile space. From plush flip seats and elegant dark glass to convenient one-button start, every enhancement elevates comfort and sophistication, making every ride a premium experience.
Water transfer printing instrument panel (with leather grain)
transfer printing instrument panel (without leather grain)
Flip Seat
Dark Brown Flip Glass
Steering Wheel Style Change
Steering Wheel with Integral Clip
3-Point Seat Belt
Custom parts
Custom parts bring unique personalization to your golf cart. From intricate seat embroidery to bespoke controllers, every custom detail reflects the owner’s distinct style. With these customizations, your vehicle becomes a personal statement of identity and taste.
Bumper LOGO customization
Custom Seats with Embroidered LOGO
Front Cover LOGO Customization
Net LOGO Customization
Rain cover with LOGO customization
Flip-Down Storage Box Under Seat with Lock
Golf Cart Charging Gun

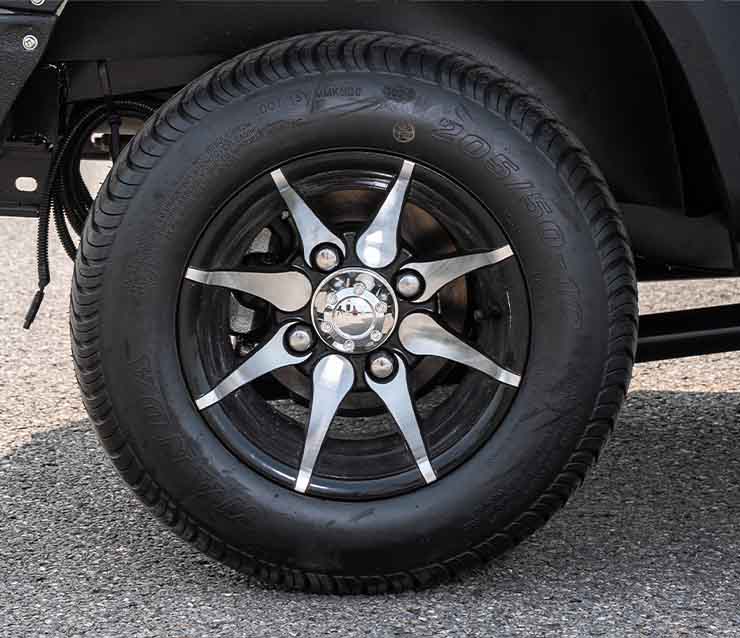

Wheel Upgrade
Wheel upgrades provide your golf cart with unmatched adaptability. Whether you choose refined road tires or robust off-road options, each selection ensures smooth and stable driving across diverse terrains, offering a flawless driving experience.
Wheel style can be upgraded！
Rims
Tire size can be upgraded!
Road Tire
Rust-proof Upgrade
Fully electric and zero-emission, the BAK golf cart is not only a means of transportation, but also a loving tribute to high-quality life and a green earth. Diverse choices and personalized colors make every trip a dual declaration of personality and envir
Semi-Aluminum Frame
Power Upgrade
Power battery upgrades energize your golf cart with sustained power. Choose from 48V200Ah or 72V150Ah batteries to ensure long-lasting performance and extended range, empowering your adventures to go further with confidence.
| Power upgrade | Standard version | Upgrade Ⅰ | Upgrade Ⅱ | Upgrade Ⅲ |
| 48V150Ah | 48V200Ah | 72V100Ah | 72V150Ah | |
| Nominal Voltage (V) | 48 | 48 | 48 | 48 |
| Nominal Capacity(Ah) | 100 | 100 | 100 | 100 |
| Rated Energy(kWh) | 4.8 | 4.8 | 4.8 | 4.8 |
| Cell Material Type | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) |
| Battery Case Materia | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel |
| Battery Weight (kg) | 52 ± 3 | 52 ± 3 | 52 ± 3 | 52 ± 3 |
