Introduction
Key Features:

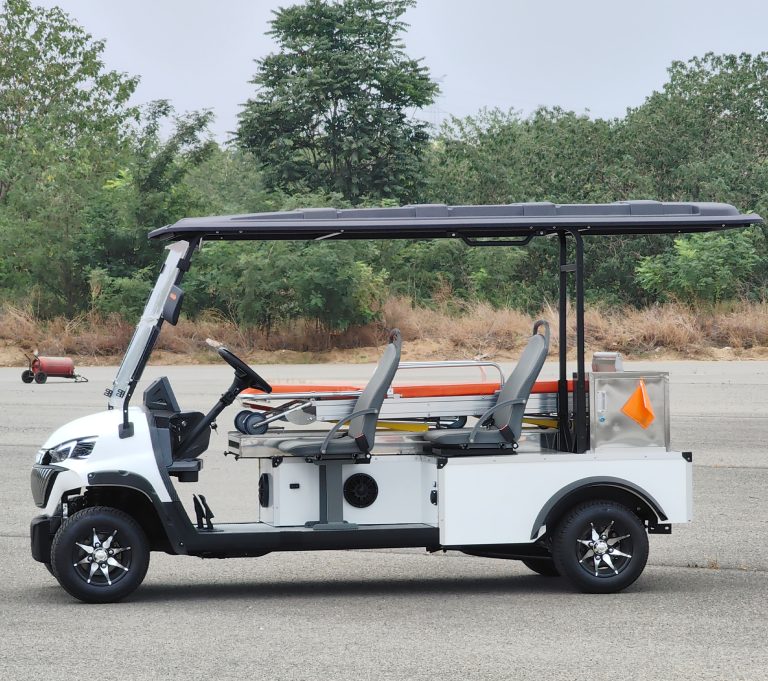

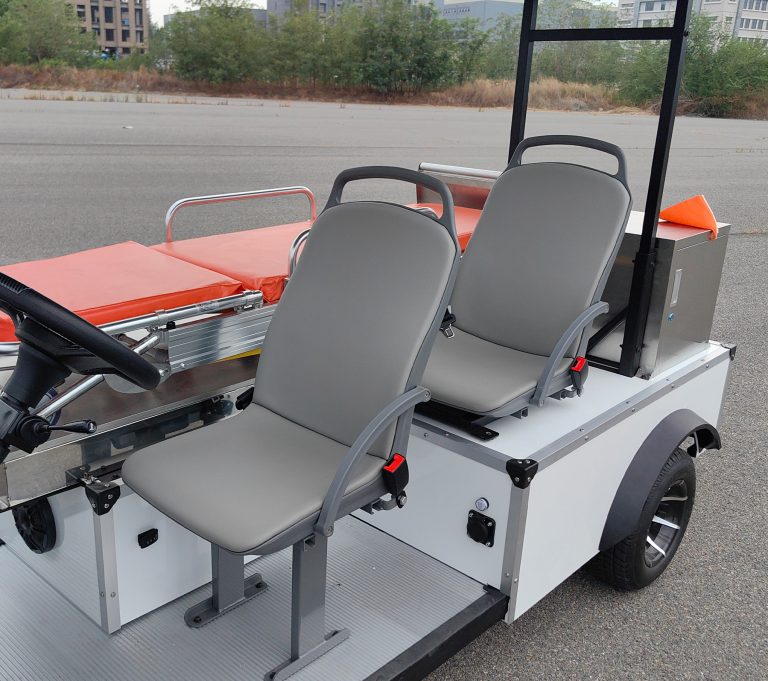

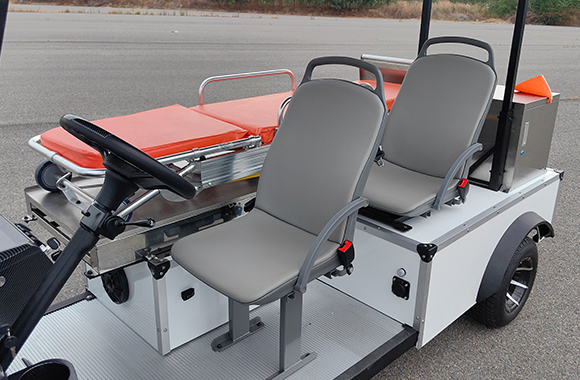

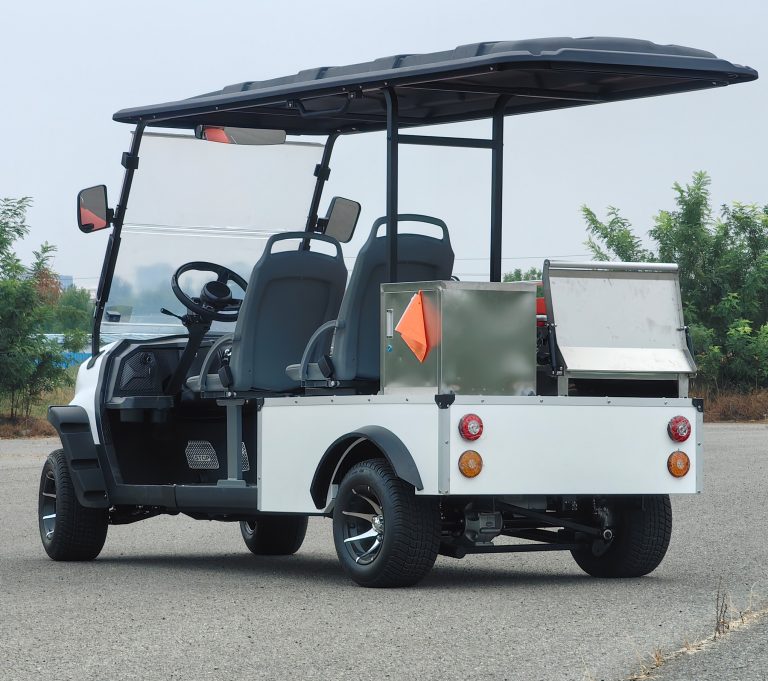

🚑 Ambulance-Style Layout
On the left side, two comfortable seats are provided for the driver and a medical staff member. The right side is reserved as a patient area equipped with a stretcher platform.

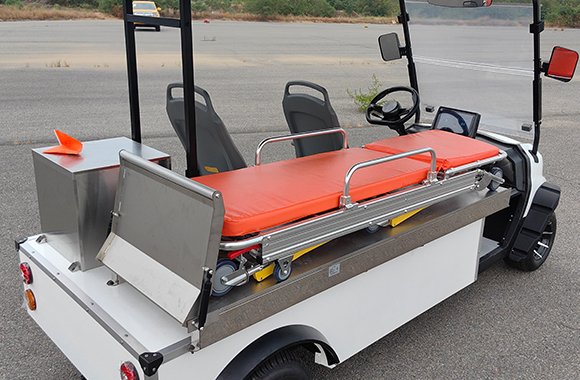

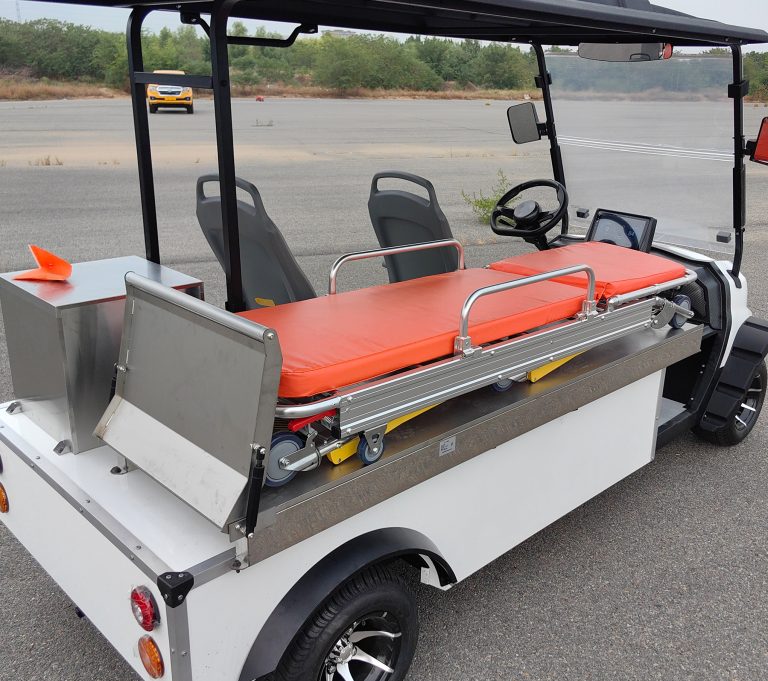

🛏️ Slide-In Stretcher System
Designed for fast and secure patient loading—the stretcher can slide directly in and out with minimal lifting effort. Integrated locking mechanism keeps the stretcher stable during transport.
🔋 Zero-Emission Electric Drive
Powered by a reliable electric motor with low noise and zero emissions, this vehicle is ideal for indoor and sensitive environments such as hospitals, stadiums, or schools.
🧭 Compact and Agile
Its narrow turning radius and compact dimensions make it easy to maneuver through narrow passages and corridors.
🩺 Medical-Ready Interior

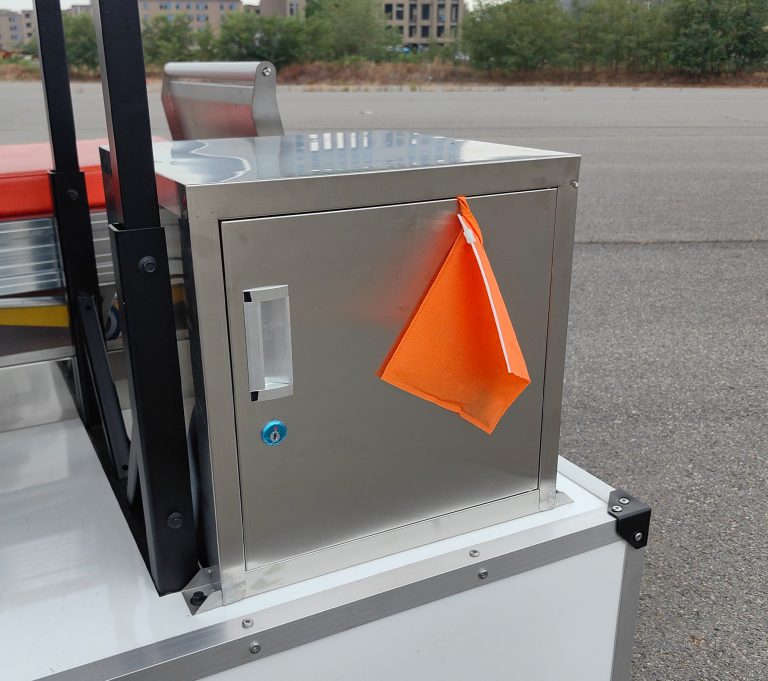

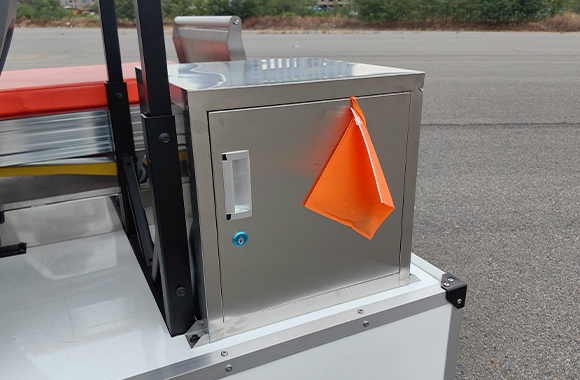

Equipped with essential features for emergency transport such as medical supply storage, patient safety belts, optional oxygen tank holders, and overhead canopy for weather protection.
⸻
Ideal For Use In:
• Theme parks & resorts
• School campuses
• Airports & seaports
• Stadiums & arenas
• Industrial parks
• Community patrol & emergency services
Parameters
| Model | Electric Medical Vehicle |
| Seating capacity | 2 seats + 1 stretcher space |
| Configuration | Standard Type |
| Basic technical parameters | |
| External dimensions Length*Width*Height (mm) | 3700*1340*1940mm |
| Rated passenger capacity (persons) | 3 |
| Wheelbase (mm) | 2400mm |
| Front track width (mm) | 895mm |
| Rear track width (mm) | 1010mm |
| Curb weight | 610kg |
| Maximum speed (MPH) | 20 |
| Maximum climbing angle | 25% no load; 20% full load |
| Maximum range (miles) | 60-70 km(20 km/h on flat ground) |
| Minimum ground clearance (mm) | 100 |
| Minimum turning radius (m) | 4.8 |
| Braking distance (m) | ＜6 |
| Electrical system | |
| Battery type | Lithium iron phosphate battery |
| Battery capacity | 48V 150Ah |
| Charger | Wide voltage platform 110V/220V universal |
| DC-DC | 300W |
| Motor type | AC motor |
| Motor power | 5kW |
| Electronic control | Sunny |

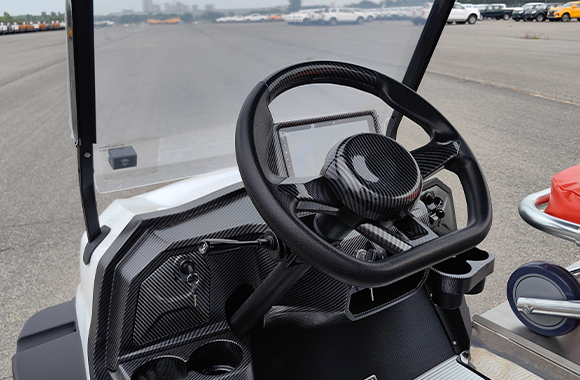

| Central control instrument panel (no logo when powered on) | 10-inch LCD screen |
| AUX data transmission port | ● |
| Front USB charging port | ● |

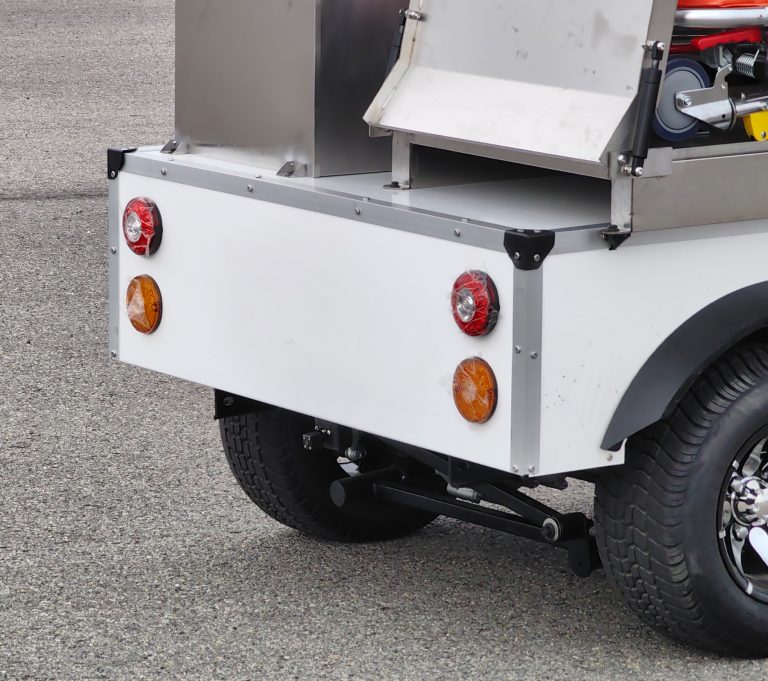

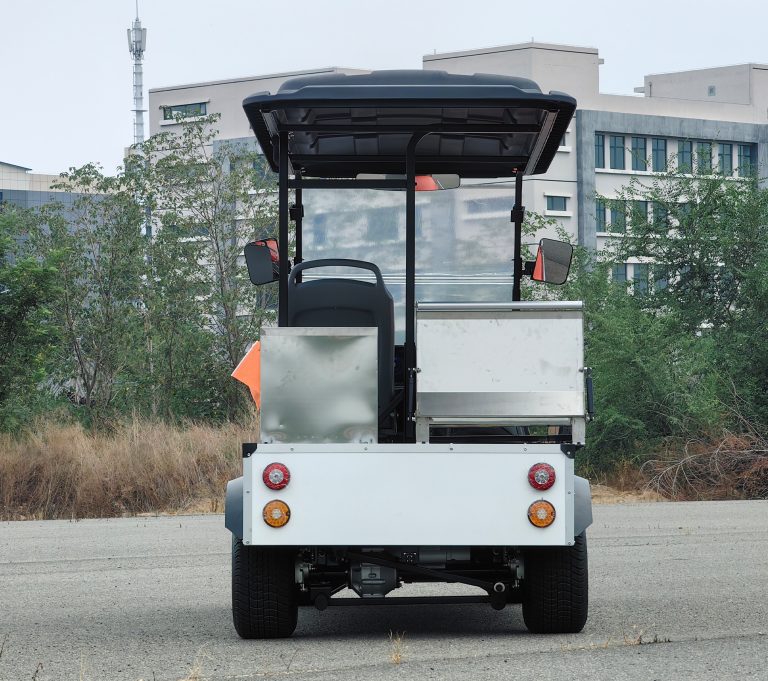

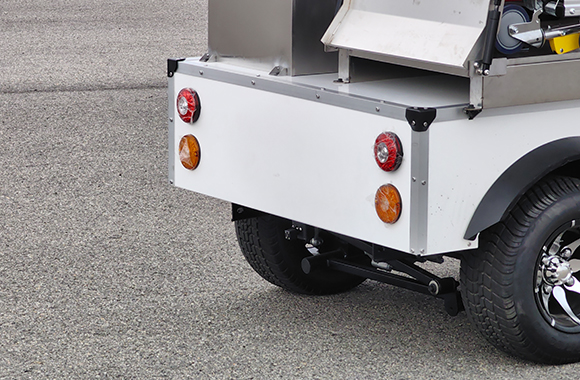

| Body lighting | LED front combination lights + LED rear tail lights + LED daytime running lights |
| Rearview camera | ● |
| Chassis System | |
| Front suspension | Double wishbone independent suspension |
| Rear suspension | Trailing arm non-independent suspension |
| Rear axle gear ratio | 12.3:1 |
| Braking system | Four-wheel hydraulic brakes + electromagnetic brakes |
| Steering system | Dual-direction mechanical gear rack steering gear |

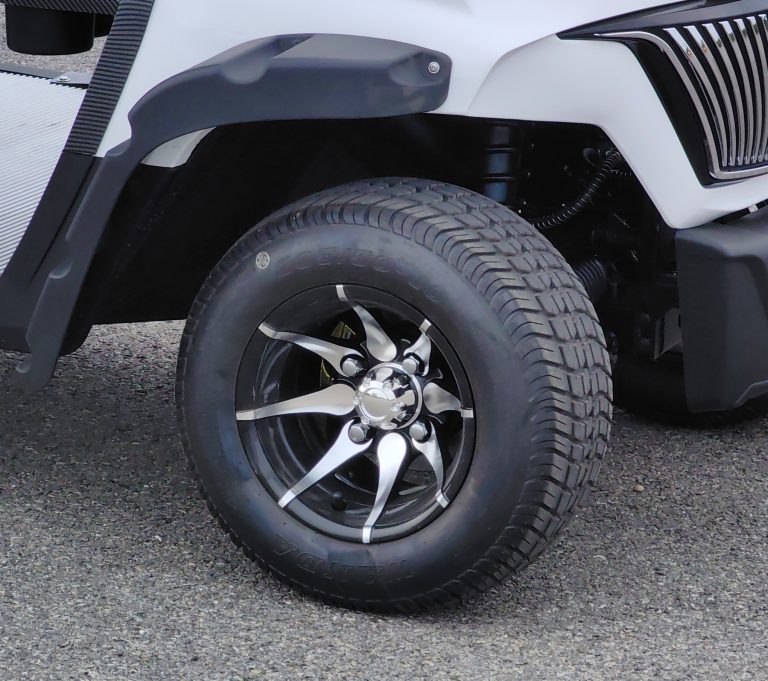

| Tire type | Road tires |
| Tire specifications | 10-inch |
| Wheel rim material | Aluminum alloy |
| Body trim parts | |
| Grille color | Chrome-plated silver |
| Front windshield | Transparent flip-up glass |
| Roof lining | Matte black square tube frame + PP black injection-molded roof |
| Water transfer printed dashboard | ● |
| Two-point seatbelts | ● |
| Floor material | Aluminum alloy floor |

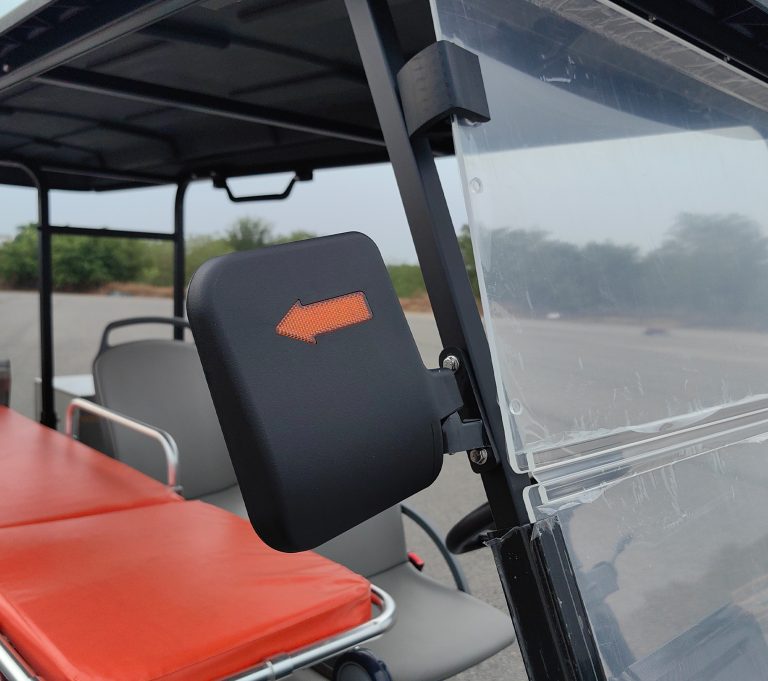

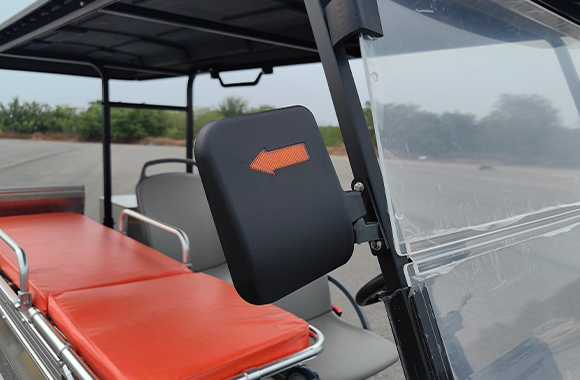

| Turn signal mirrors | ● |
| Front bumper material | Plastic |
Optional Accessories List
Add Accessories
BAK Golf Cart – Green Travel, Enjoy Comfortable Experience
Function Upgrade
Wheel style can be upgraded！
BAK Golf Cart – Green Travel, Enjoy Comfortable Experience
Interior Upgrades
Custom parts
Wheel Upgrade
Tire size can be upgraded!
Wheel style can be upgraded！
Rust-proof Upgrade
Power Upgrade
| Power upgrade | Standard version | Upgrade Ⅰ | Upgrade Ⅱ | Upgrade Ⅲ |
| 48V150Ah | 48V200Ah | 72V100Ah | 72V150Ah | |
| Nominal Voltage (V) | 48 | 48 | 48 | 48 |
| Nominal Capacity(Ah) | 100 | 100 | 100 | 100 |
| Rated Energy(kWh) | 4.8 | 4.8 | 4.8 | 4.8 |
| Cell Material Type | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) |
| Battery Case Materia | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel | Cold-rolled Steel |
| Battery Weight (kg) | 52 ± 3 | 52 ± 3 | 52 ± 3 | 52 ± 3 |
